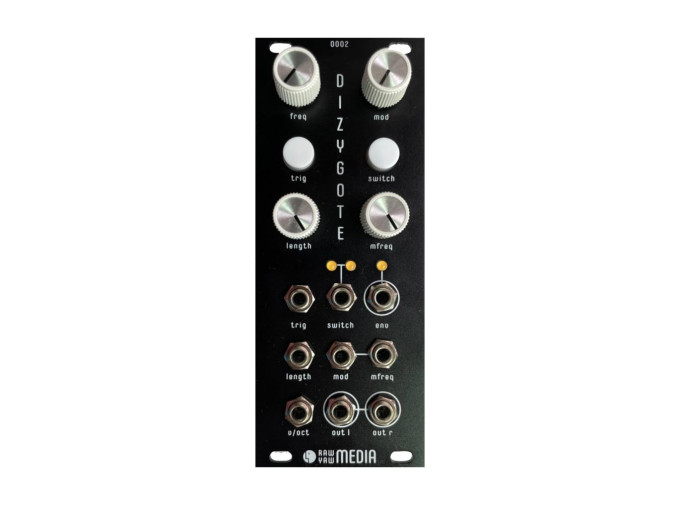

Raw Yaw Media Dizygote

Dizygote from Raw Yaw Media is a dual-algorithm digital oscillator with switchable output modes and an integrated envelope/VCA combo. The "A-side" oscillator is based around adding frequencies to a square wave via frequency modulation, while the "B-side" offers a different but complimentary tonal palette through phase distortion of a sine wave. Both oscillators share knobs and CV inputs for modulation depth, modulation frequency, and 1V/octave pitch.

Manually pressing the switch button or sending a trigger to the switch CV input routes the output of either oscillator or a mix of both to the stereo outputs. Using a long press on this switch allows you to further customize this output as either stereo or dual-mono for separate processing of the two oscillators. An integrated simple envelope and VCA make the Dizygote a fully capable additive voice in just 10 HP, making it perfect for smaller systems. A slightly snappier copy of this envelope can also be patched elsewhere from Dizygote's envelope output for further modulation in your system. With a double-dose of modular functionality in such a small package, Dizygote is sure to find a useful place alongside other voices in your rack, or as the centerpiece of a small and flexible system.

Dizygote Features

  • Dual-algorithm digital oscillator
  • Switchable output selects between either algorithm or a mix of both in stereo or dual-mono
  • Integrated envelope and VCA
  • "A-side" oscillator is a frequency modulated square wave
  • "B-side" oscillator is a phase distorted sine wave
  • Envelope out with "squeezed", slightly shorter response
  • Eurorack module
  • Width: 10hp
  • Depth: 35mm
  • Current draw: 100mA @ +12V, 40mA @ -12V, 0mA @ 5V
