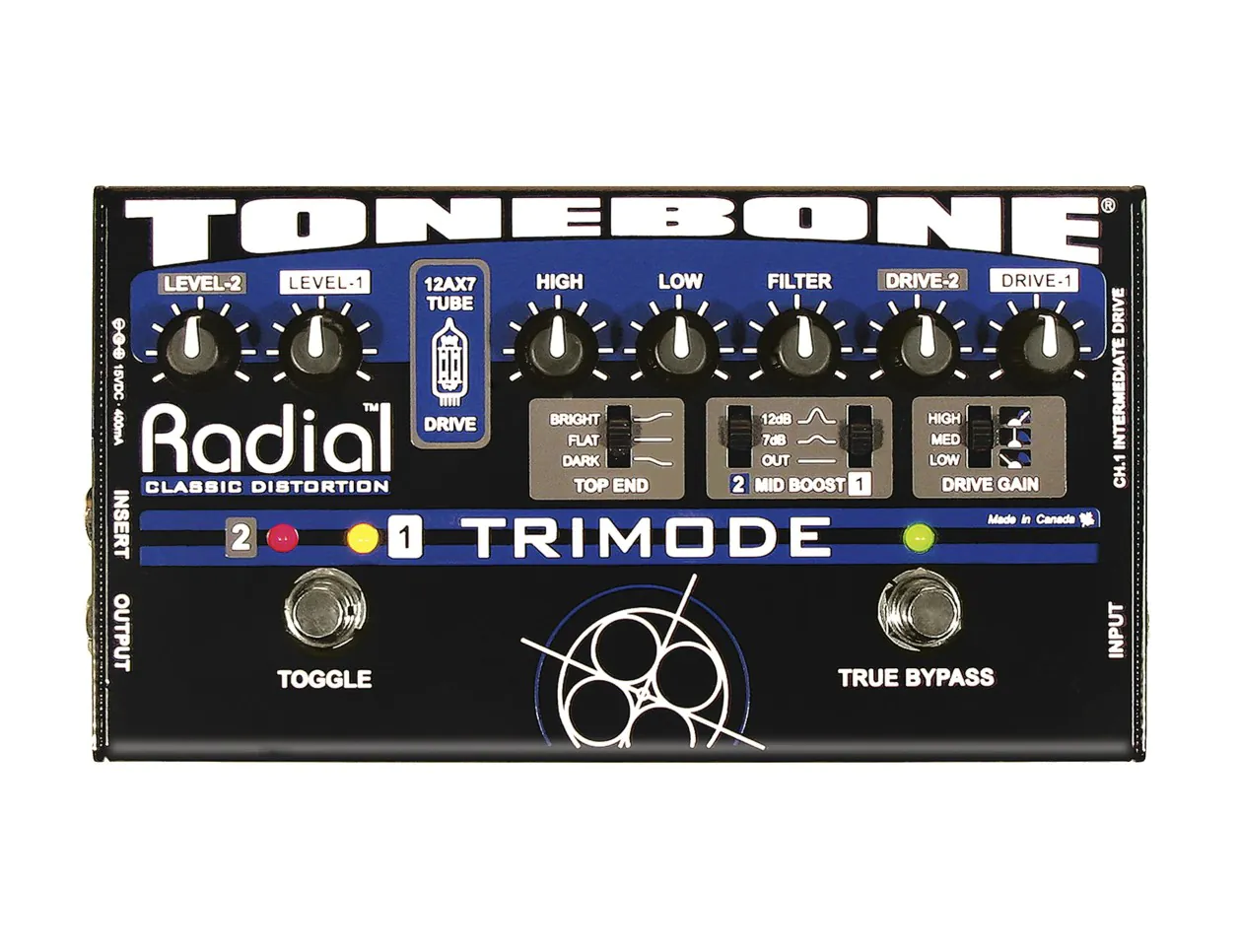

Radial Engineering Tonebone Trimode Distortion Pedal

Set up three channels of tone on a single-channel amp!

The 12AX7 tube-equipped Radial Tonebone TriMode Distortion Pedal has true-bypass and 2 distorted channels with separate input drive and output level controls. It allows you to set up completely different clean, rhythm, and solo tones from a single pedal and amp combination. There's even an effects loop on channel 2 so you can insert an effect automatically when soloing. Tonebone pedal features include 3-position tone shaping, drive ranges switches, 2-band EQ, independent mid boost on each channel, and high frequency roll-off.

Tonebone Trimode Distortion Pedal Features

  • 12AX7-equipped tube distortion pedal
  • True-bypass
  • 2 distortion channels
  • Separate input drive and output level controls
  • Effects loop on channel 2
  • 3-position tone shaping
  • Drive range switches
  • 2-band EQ
  • Independent mid boost on each channel
  • High frequency roll-off
  • TRS effects loop insert on channel 2
  • 8"W x 5"H
  • 14 gauge steel construction


  • Circuit type: Hybrid tube / proprietary circuit
  • Tube type Standard 12AX7 vacuum tube
  • Input impedance: 1meg Ohm at input jack
  • Output impendence: 10K Ohm
  • Drive gain
  • 3-way switch: Used in conjunction with the drive gain control. Drive switch selects the gain range of the overdrive circuit
  • Medium distortion: (+9dB)
  • High distortion: (+20dB)
  • Intermediate drive: (Intergain™) Variable fine-tune gain for CHANNEL-1 (rhythm) - counter-clockwise for more gain
  • Drive-1 & 2 controls: Used in conjunction with the drive gain switch, drive is used to adjust the overall amount of gain to the overdrive circuit
  • Mid Boost 1 & 2 - two 3 pos switches: Used to fatten up the sound for more cut and sustain during solos. Also, will fatten up the sound of single coil pickups
  • FILTER control: Balances the ratio of high frequencies between amplifier and Classic distortion to compensate for overly bright amplifiers
  • TOP END: 3-way switch Switch sets the overall tonal character of the Classic to best match the amp and settings. Brighter amps are normally compensated with darker settings
  • Footswitches: True bypass with green on/off status LED
  • Toggle 1<>2 with red & yellow status LED's
  • LED indicators: Large 3mm OD ultra-bright LED's
  • Switching: Opto-coupler assisted, 5msec Rise time
  • Construction: 14 gauge steel, baked enamel finish
  • Size: 8.12 x 4.25 x 2.12" (207 x 108 x 54mm)
  • Weight: 2.55lb (1.16kg)
