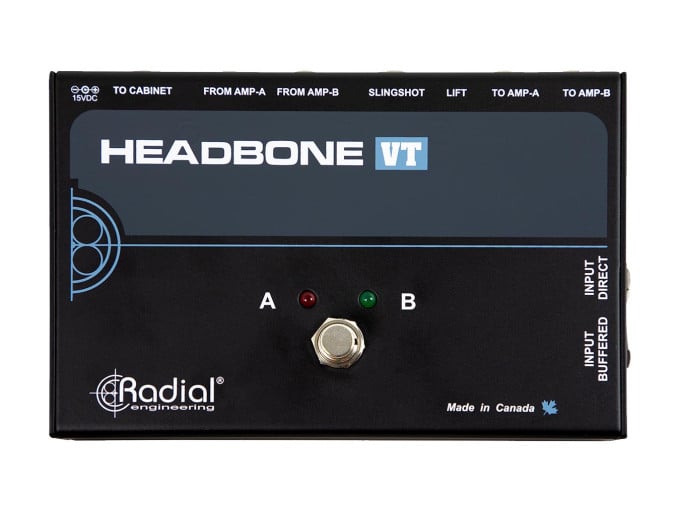

Radial Tonebone Headbone VT

As part of the growing line of Tonebone foot pedals, Radial introduces the Headbone VT, a guitar amplifier head switcher that allows the player to transition from, for example, a Mesa Boogie Dual-Rectifier to a Marshall JCM800 while using the same cabinet. The Headbone employs a series of photocells to assure noise-free guitar-to-head switching and a series of high cycle relays that switch between the 2 heads and the speaker. A digital programmable interrupt controller receives commands from the onboard footswitch or the Slingshot remote switching system and controls the transition between equipment to ensure proper amplifier loads are always maintained.

Tonebone Headbone VT Features

  • Amp head switcher
  • Employs a series of photocells for noise-free switching
  • High cycle relays switch between the 2 heads and the speaker
  • Digital programmable interrupt controller receives commands from the onboard footswitch or the Slingshot remote switching system
  • Circuit type: Proprietary electro-mechanical
  • Audio Signal Path: Class-A - 100% discrete componentry
  • Input impedance: 100 kOhms (direct input)10 kOhms (bufferd input)
  • Switching type: Programmed PIC controlled relay
  • Relay type and capacity: Silver plated contacts - 10 million cycles, 100 Watts RMS rated
  • Switching time: 11.2 milliseconds
  • Outputs: Speaker out
  • Slingshot™ implimentation: Slingshot™ remote switching input
  • Footswitch: High-cycle heavy-duty Amp-1 / Amp-2 toggle with status LED's
  • LED indicators: Large 3mm OD ultra-bright LED's
  • Construction: 14 gauge steel, baked enamel finish
  • Size: 6.85 x 4.5 x 2.12" (175 x 108 x 54mm)
  • Weight: 2.2lb (1.kg)
