Radial Engineering

JS2 Passive Jensen Mic Splitter

SKU
N12-1405
$284.99
envelope Notify me when available
shipping Free Shipping
warranty Extended Warranty
lowprice Low Prices Guaranteed
Special order delivery times vary. Note that special orders may not be returned or cancelled. Feel free to reach out for more info!
JS2 Passive Jensen Mic Splitter
$284.99

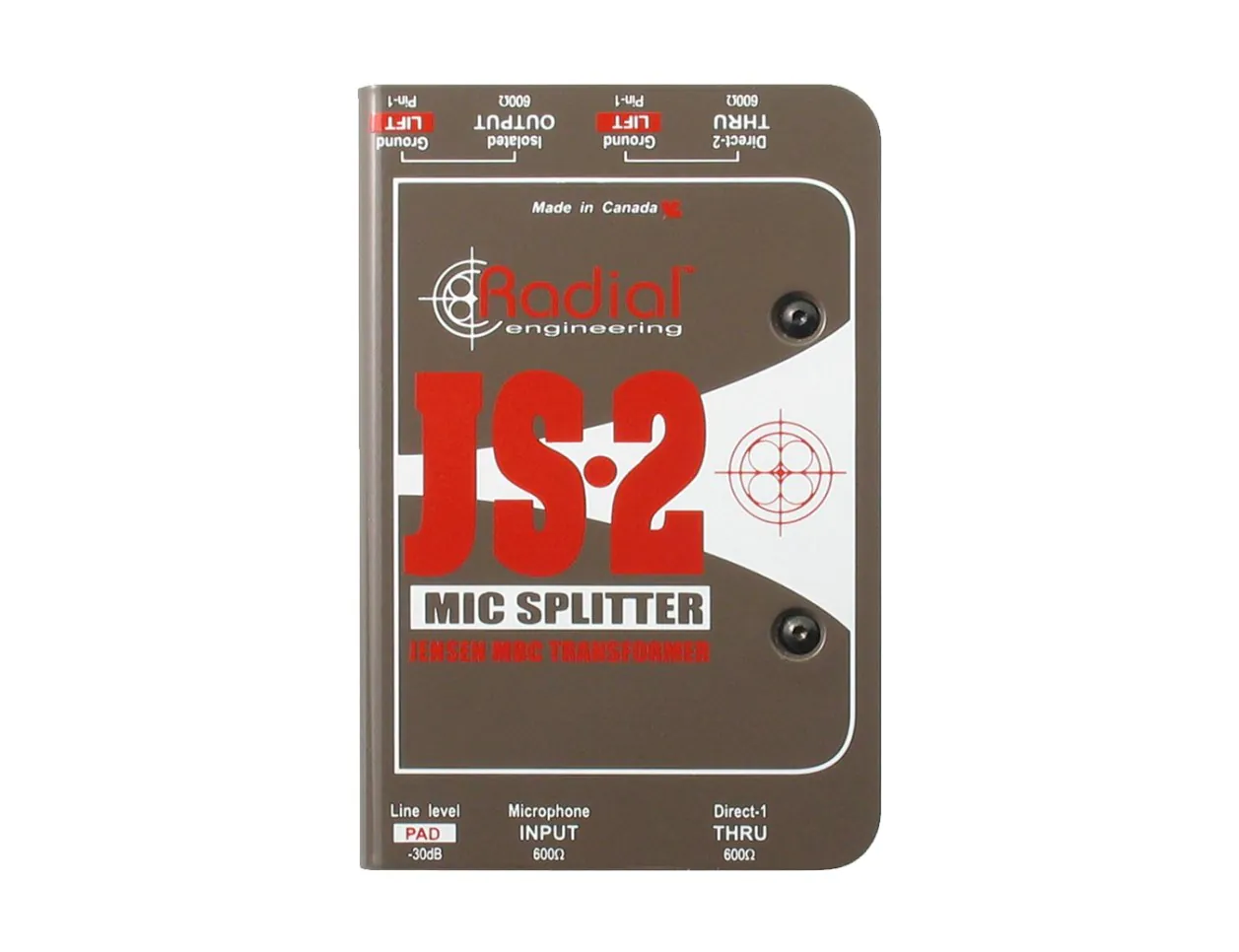

Radial JS2

Features electrically isolated XLR I/O, a second auxiliary direct throughput with ground lift, and a transformer-isolated output. Has a 30dB pad, supplies 48V DC phantom power for microphones, has a ground lift, and has common mode noise rejection up to -100dB at 60Hz. Features a stand-alone housing with 14-gauge, I-beam steel frame with baked enamel finish and an innovative bookend cover.

JS2 Features

  • Passive splitter direct box
  • Electrically isolated XLR I/O
  • Second auxiliary direct throughput with ground lift
  • Transformer-isolated output
  • 30dB pad
  • 48V DC phantom power
  • Ground lift
  • Common mode noise rejection up to -100dB at 60Hz
  • 14-gauge, I-Beam steel frame
  • Baked enamel finish
  • Innovative bookend cover

Product Details

  • Input impedance:  1.06kOhms (1kHz, -20dBu)
  • Insertion loss:  .8dB
  • Voltage gain:  -.82dB (1kHz, -20dBu)
  • Deviation from linear phase:  +3.3/-0° (20Hz to 20kHz, -20dBu)
  • Frequency Response:  10Hz to 80kHz
  • Distortion (THD):  0.001% (1kHz, -20dBu) / 0.05% (20Hz, -20dBu)
  • Maximum input level:  +2.0dBu (20Hz, 1% THD)
  • Common-mode rejection ratio (CMRR):  130dB (60Hz) / 95dB (3kHz)
  • Output Impedance:  245 Ohms
  • Size (H x W x D): 2” x 3.25” x 5”
  • Weight:  1.95lbs / .9kg
  • Construction:  14-gauge steel chassis & shell, baked enamel finish
  • Warranty:  3 years on device, 20yrs on Jensen transformers
