Radial Engineering Gold Digger MS4 4 CH Mic Selector

Item#
N12-1416
In Stock Available immediately!
  • Free Shipping
  • No Hassle Returns
  • Extended Warranty
  • Low Price Guarantee
$349.99

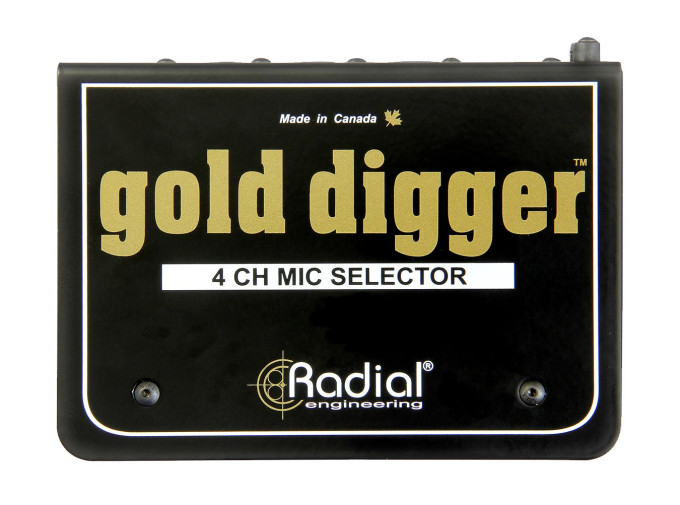

Radial Engineering Gold Digger MS-4

The Gold Digger, from Radial Engineering, is a quad mic selector that affords the ability to compare four different microphones via the same preamp. It boasts a straight wire passive circuit design devoid of any transformers or audio buffers. Consequently, the Gold Digger makes use of military grade contact relays for the governance of its switching process. This implementation ensures a pristine and transparent mic signal devoid of any coloration, distortion, or artifacts.

The unit contains four XLR-F mic inputs alongside a single XLR-M output. Each channel features a selector switch that makes it possible to have one active mic at a time. It also provides 48V of Phantom Power that can be switched on or off for each microphone. If all that wasn’t convenient enough, the Gold Digger features set & forget trim controls that give users the ability to adjust each mic level, allowing them to produce identical relative outputs. The result is a powerful mic selector that drastically enhances studio workflow while simultaneously giving the artist more confidence in their sound.

Gold Digger MS-4 Features

  • Four selectable inputs with trim adjusts
  • Straight wire distortion-free signal path
  • Will not introduce color or artifact
  • Increases artist's confidence when recording



  • Audio circuit type: Passive signal path with active relay switching
  • Maximum signal handling: +25dB
  • Total harmonic distortion: 0.0003%
  • Frequency response: 10Hz to 100kHz +/- 0.0dB
  • Dynamic range: >140dB
  • Equivalent input noise: <-115dBu
  • Phase deviation: < 0.001 degrees at all frequencies
  • Common mode rejection: -92dBu @ 60Hz
  • Input impedance: 600 Ohms (typical)
  • Output impedance: Coincides with input impedance
  • Balanced inputs: 4 channels with on/off switch & LED indicator
  • Balanced output: Single output
  • Level control: Variable input trim on each channel
  • Phantom power: 48V phantom on each channel with recessed switch
  • XLR configuration: AES standard (pin-2 hot)
  • Construction: 14 gauge steel chassis & outer shell
  • Finish: Baked enamel
  • Size: (W x H x D) 4.5" x 2" x 6" (121 x 64 x 147mm)
  • Weight: 2.8 lb (1.3kg)
  • Shipping size: W x H x D: 4.75" x 2.5" x 10.75" (121 x 64 x 273mm)
  • Shipping weight: 3.05 lb ( 1.4kg)
  • Power: +15V DC/400mA power supply included
  • Warranty: Radial 3-year, transferable
