Radial EngineeringCatapult Mini TX Cat-5 Audio Snake


In Stock Available immediately!
  • Free Shipping
  • No Hassle Returns
    No Hassle
  • Warranty
  • Low Price Guarantee'
    Low Prices

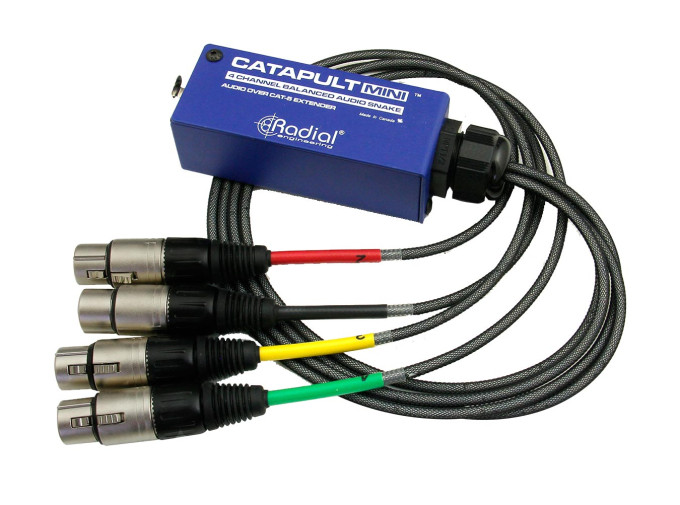

Radial Engineering Catapult Mini TX

Compact and easier to wield than a traditional, bulky audio snake, Radial Engineering's Catapult Mini TX is a component of a snake system utilizing CAT-5 Ethernet cabling. Because of the widespread usage and availability of Ethernet cables, they're incredibly useful for transmitting audio signals across long distances, whether it be to the front-of-house, live booth, or over to your colleague down the hall. The Catapult system is highly economical when you only need to share a few signals, compared to investing in a traditional snake. This model provides four XLR female connectors, and should be paired with either Catapult Mini TRS or Mini RX.

Catapult Mini TX Features

  • Four-channel CAT-5 audio snake
  • Consolidate four microphones, DI boxes, or other balanced XLR signals down to a single CAT-5 ethernet cable
  • Easily identify signals with color-coded cables
  • Rugged 16-gauge steel housing
  • Input Connections: 4x XLR
  • Output Connections: RJ45 terminal for CAT-5 ethernet cable
  • Frequency Response: 7Hz-20kHz
  • Dynamic Range: 140dB
  • Total Harmonic Distortion (THD): 0.0005% @ 1kHz
  • Common Mode Rejection Ratio: >103dB
  • Maximum Input Level: +35dBu
  • Dimensions: 4.125" x 1.56" x 1.31" / 105 x 40 x 33mm
  • Weight: 1.1 lbs / 500g
  • Power: passive device, no power necessary
