Slew Limiter Tile

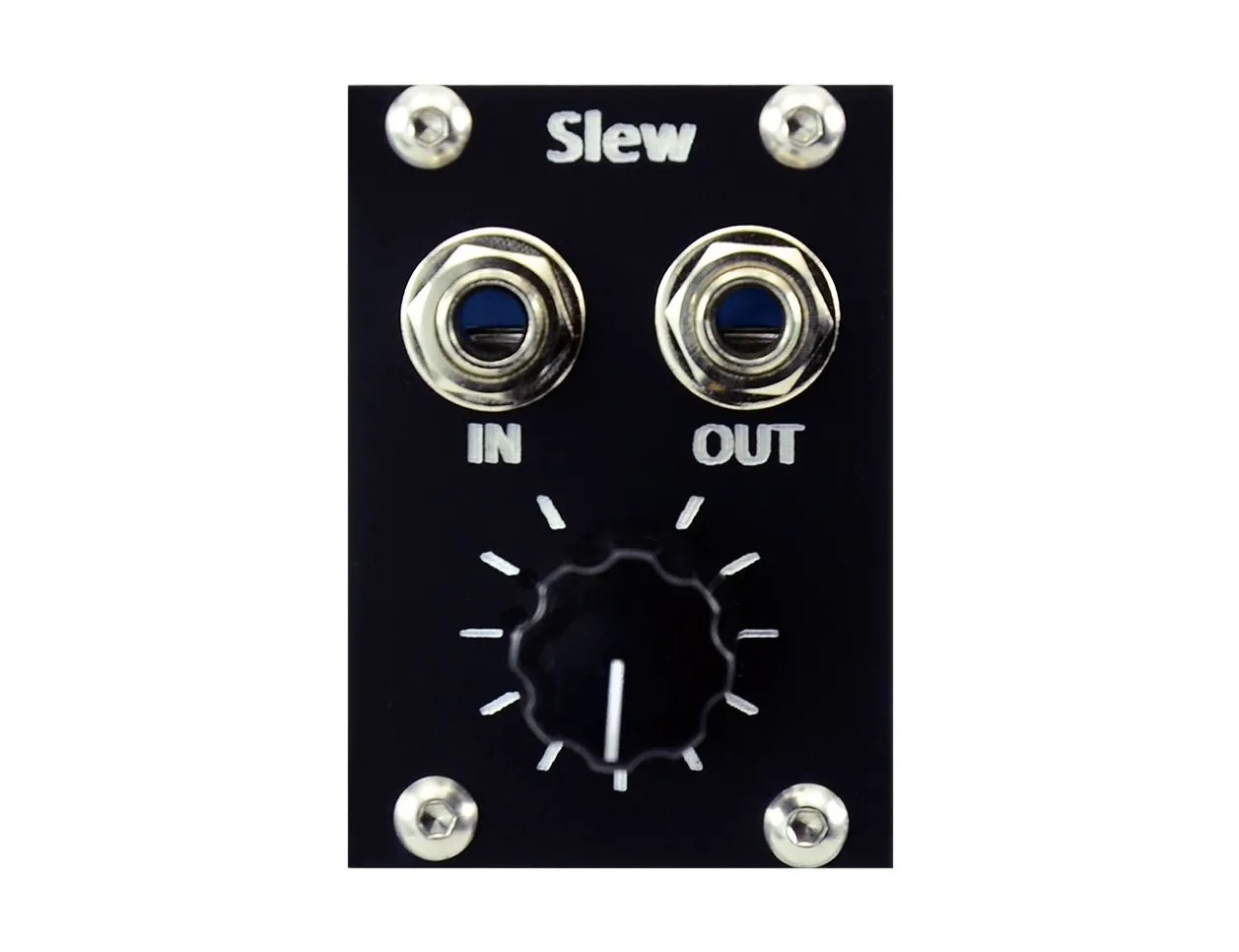

Pulp Logic Slew

NOTE: This 1U module is only compatible with Pulp Logic 1U cases. It is not compatible with Intellijel 1U cases.

The Pulp Logic Slew Limiter is a 1U slew limiter compatible with Eurorack modular synthesizers. As its name conveys, the module is a traditional slew limiter (sometimes known as an integrator). The module emits a lagged version of whatever control signal is present at its input, affecting the transition between one voltage to another.

Essentially, traditional slew limiters bear the same architecture as low-pass filters, but operate at even lower frequencies. As such, slew limiters are intended to be used exclusively with control voltages. The module contains dip switch on the reverse side that increases the slew rate.

Slew Features

• Slew Limiting and Integration
• Variable Slew Range (Slow or Fast, dip switch on he rear)
• Tile Unit
