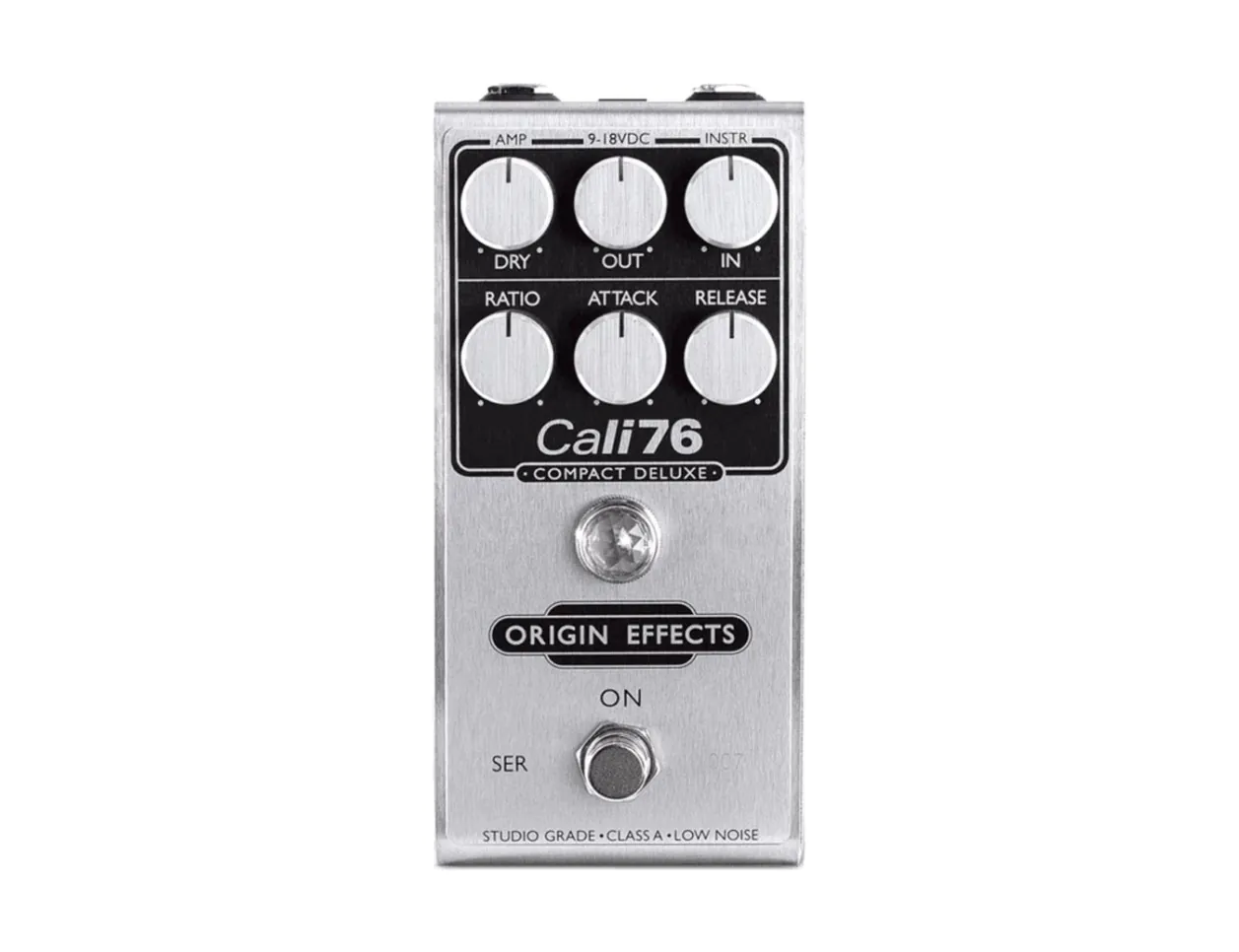

Origin Effects Cali76 Compact Deluxe
The Origin Effects Cali76 Compact Deluxe is a pedal compressor that brings the sound of real studio equipment to your pedalboard. It is a studio-grade transistor-based FET compressor based on the revered 1176 from Universal Audio—a much-loved device found on countless records. It's sure to make anything you throw at it shine.
The class-A design features an all-discrete signal path with no op-amps or VCAs for classic performance and sound. Adjust the amount of compression using the ratio control. Use the attack control to set how long it takes for the compressor to affect the signal and the release to set how long the compressor lasts. Adjust the level of the signal passing into the compressor, the signal coming out of the compressor, and then blend the dry signal back in for parallel compression. The classic jewel lamp indicates the gain reduction metering with three colors to indicate reduction. The Cali76 Compact Deluxe has that classic sound that engineers and musicians reach for time and time again—and it brings it straight to your pedalboard.
Cali76 Compact Deluxe Features
- 1176-style pedal compressor
- Class-A all-discrete circuitry with FET transistors
- Attack and release control time of compression
- Ratio controls amount of compression
- Jewel lamp indicates gain reduction
- 9–18V operation for increased headroom
- In and out level controls
- Separate dry level control for parallel compression
- Buffered silent switch bypass
- All metal construction
- Dimensions: 143 x 66 x 65mm/5.6 x 2.6 x 2.5"
- Power Specs: Operates from 9-18V 2.1mm center negative (not included)
