Nekyia CircuitsOuija Oscillator Expander

Item#
N13-09210
4hp
$169.00

  • NEW
Preorder New release—reserve yours today!

Preorder

We're awaiting our full initial batch of this item—pre-order to reserve your place in line! Customer orders are fulfilled in the order in which they are received.
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

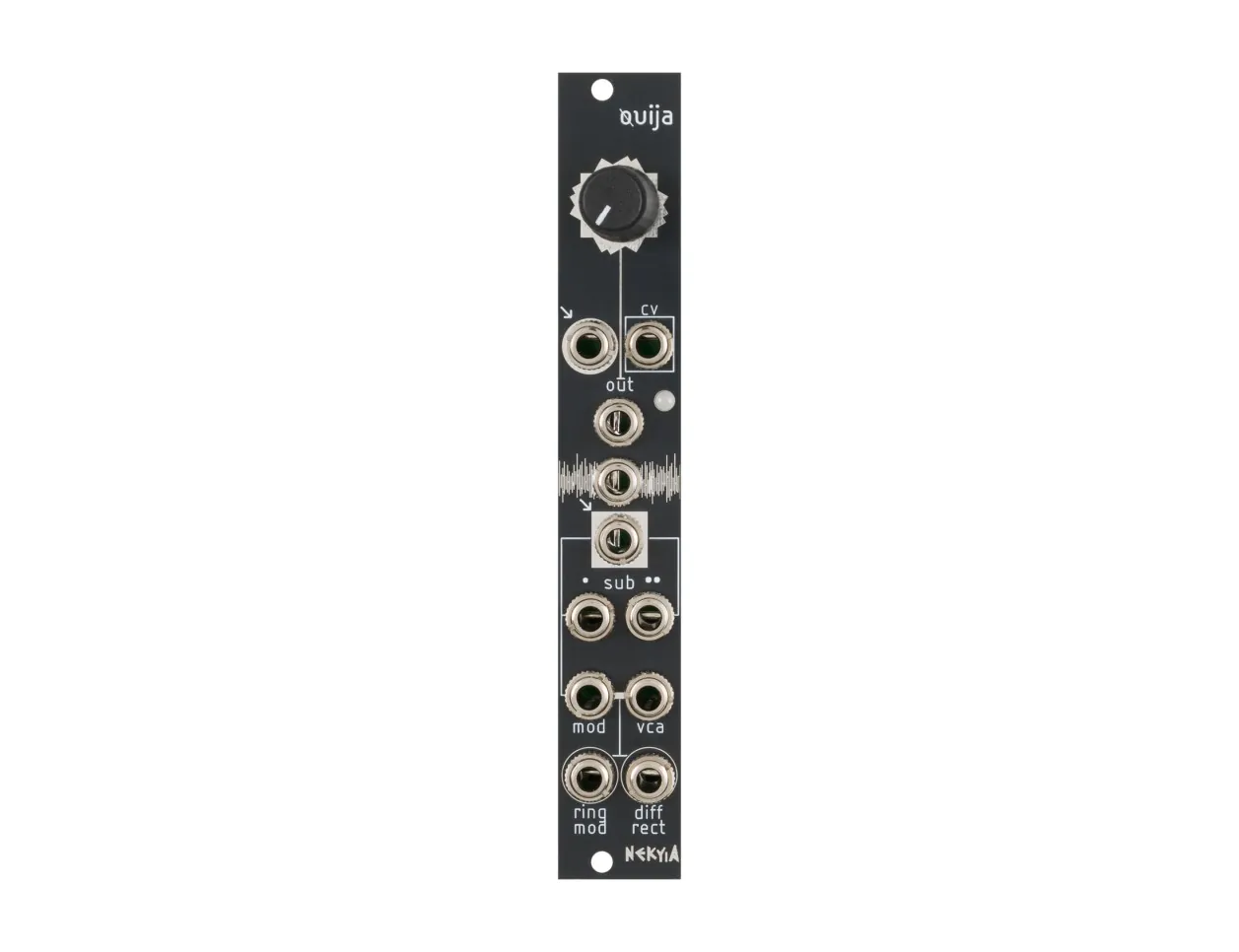

Nekyia Circuits Ouija

Ouija from Nekiya Circuits is your dutiful guide into a world of timbral transformation, providing a compact collection of utility circuits to expand any oscillator's sonic depth well into the spirit realm. In just 4 hp, Ouija combines voltage-controlled glide, analog white noise, two octaves of sub generation, and rich ring modulation and difference rectifying. An essential partner to any vanilla oscillator, Ouija covers a wide range of functions useful for virtually any musical pursuit.

Create acidic slides or smooth out a stepped random voltage with the glide circuit. Explore mixing noise with periodic tones for classic drum synthesis, or experiment with noise as an FM source. Sub octaves help thicken bass tones or even divide clock signals, while the ring modulation and difference rectifying sections are ideal for expanding waveshapes into richer forms, creating new tones at audio rate and livening-up low frequency modulations. Whatever otherworldly tone you mean to commune with, Ouija from Nekiya Circuits takes your oscillator further, divulging sonic secrets from a world beyond.

Ouija Features

  • Compact multi-function module expands functionality of any Eurorack oscillator
  • Voltage-controlled glide for portamento and more
  • Analog white noise source
  • Suboctave generator with -1 and -2 octave outputs
  • Ring modulator and Difference rectifier with VCA control of modulation depth
  • Eurorack module
  • Width: 4hp
  • Depth: 25mm
  • Current draw: 30mA @ +12V, 30mA @ -12V, 0mA @ +5V
Product Demo Videos
Creating HUGE oscillator tones with OCCULT (+ Ouija & Wand) & the Nekyia Circuits Eurorack range
Here we have the 3 new Nekyia Circuits Eurorack modules - Occult, Ouija and Wand. We'll focus on the star of the show here, the TZFM, sub octave generating, Ian Fritz double pulser wave shaping and external crossfading oscillator OCCULT! However we use Wand to crossfade at audio rates into new tones and Ouija for some musical ring mod too.

It's been a pleasure to check out the existing modules and to use those alongside the new ones here. As always the focus is to provide ideas and techniques while demonstrating how things work. So I hope you can take some of the patches to try out.
Nekyia Circuits Ouija Oscillator Expander Reviews
