NANO ModulesSerra ADSR Envelope Generator

Item#
N13-06267
10hp
$149.99

In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

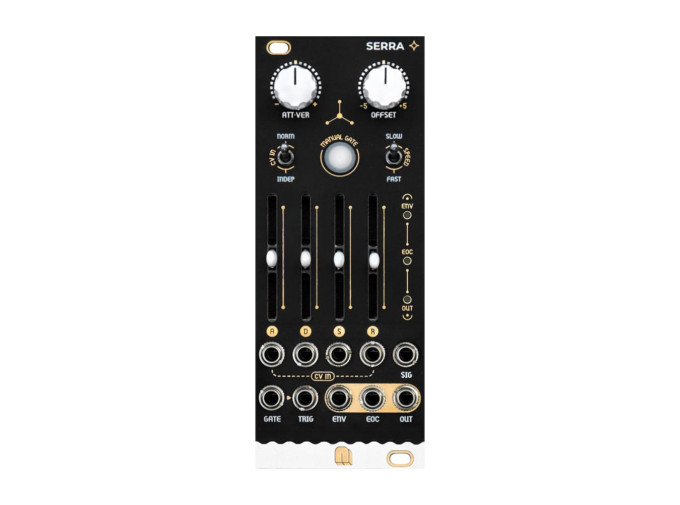

NANO Modules Serra

Serra from NANO Modules is a robust ADSR envelope generator packed with handy features and voltage control over all stages, plus an additional attenuverter/offset section. Using the sliders, you can create the perfect envelope shape adjusting the attack, decay, sustain, and release. You can add further control and interaction by using the external modulation sources to control any of the envelope stages or have a single signal modulate all parameters simultaneously using the CV Mode switch. The addition of an attenuation/inversion and +/-5v offset adjustments gives you the options to adjust external signals using the SIG input, however, with nothing patch the ENV OUT is normalized to that patch point. Easily adjust the shape with a manual trigger button and adjust the speed to be as long as 40s in length. Perfect for adding a precise envelope to your rack, the Serra from Nano Modules is an exceptional envelope generator.

Serra Features

  • ADSR envelope generator with CV over all 4 stages
  • Attenuation/inversion and offset stage for fine tuning the shape
  • Fast and slow envelope times can go as fast as 1ms or as slow as 40s
  • Independant Gate and Trigger inputs
  • CV Mode switches from all stages normalized to all stages independent for single input control over the entire envelope shape
  • Eurorack module
  • Width: 10hp
  • Depth: 20mm
  • Current draw: 53mA @ +12V, 39mA @ -12V
