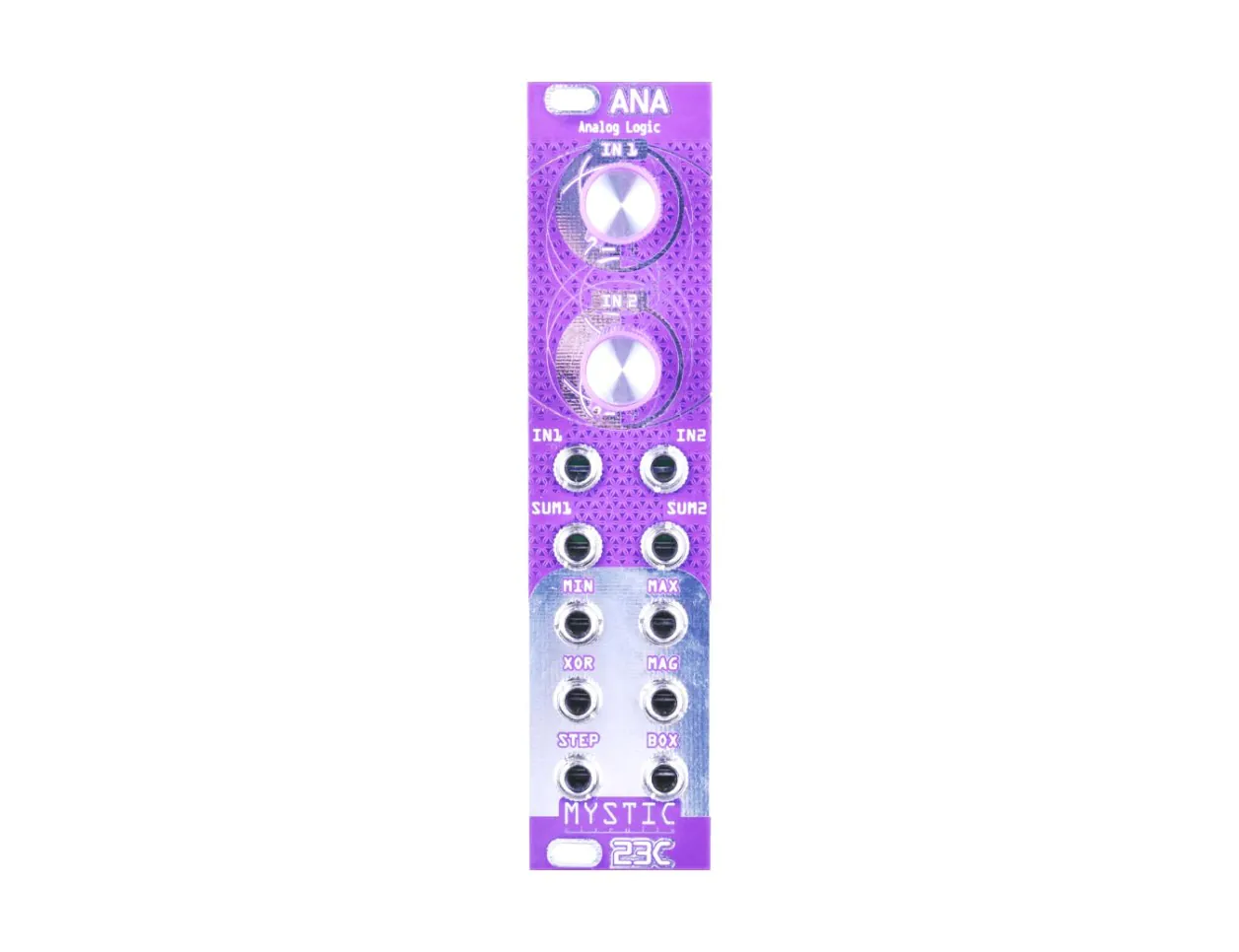

Mystic Circuits Ana

The Mystic Circuits Ana is a multifunction logic module that breaks the barriers of traditional binary logic and extends into the realm of analog signal processing. With two signal inputs and six distinct logic-derived outputs, it is a perfect way of comparing and mangling signals into completely new shapes.

Each of Ana's inputs provides an attenuverter for signal level; when nothing is patched to an input, these are normalled to an internal voltage offset, opening up the potential for use as a nonlinear macro controller or rectifier-like device. In the end, Ana is designed to mutate incoming signals into new shapes and directions: use it as a basic utility, or use it to warp your inputs beyond recognition. It works great with audio, CV, video signals, and basically anything you can throw into it.

Ana Features

  • Analog logic module perfect for utility functions, wave mangling, and beyond
  • Two inputs
  • Use with a signal input yield six related outputs
  • Use with two inputs yields six intermingled outputs
  • Each input channel acts as an offset with nothing patched
  • Use it for audio, CV, or even video signals
  • Eurorack module
  • Width: 6hp
  • Depth: 34mm
  • Current draw: 30mA @ +12V, 10mA @ -12V
