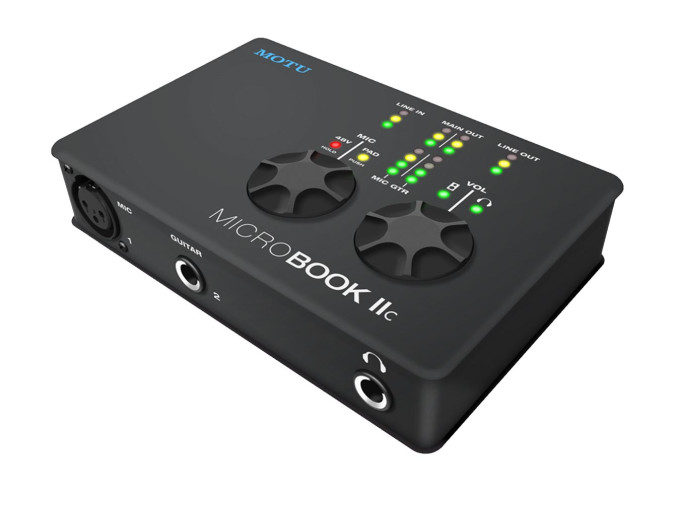

MOTU MicroBook IIc

The MOTU MicroBook IIc is a compact, class compliant, and powerful preamp with a slew of simultaneous inputs for various line-level devices. The preamp itself is naturally colored and includes a 20dB pad alongside 48V Phantom Power. Additionally, all of the interface’s outputs are programmable, allowing for a variety of flexible monitoring options unavailable in other similarly-priced interfaces.

The MicroBook IIc is also an 8-bus digital mixer with mixable live inputs that can be used alongside or independently of host software tracks. When running the included CueMix FX software, users can create separate live audio mixes and route them to any combination of its three separate outputs: main out, line out, or phones out. This allows for a host of creative mixing/routing options no matter whether the interface is included in a studio or stage environment.

MicroBook IIc Features

  • 4-Input, 6-output bus-powered class compliant high-speed USB 2.0 audio interface
  • 6 x 8 Physical inputs and outputs
  • 8-Bus digital mixer to route and mix live inputs with computer tracks
  • Pre-amp equipped mic input with Precision Digital Trim 48V phantom power, and 20 dB pad
  • Hi-Z guitar input with -20 dB pad Precision Digital Trim
  • Stereo line level analog input (balanced TRS quarter-inch or stereo mini)
  • Stereo balanced TRS quarter-inch line level main outs
  • Stereo eighth-inch "mini" line level out
  • S/PDIF digital out (duplicates main out)
  • Headphones output on quarter-inch stereo jack with independent volume control
  • Digitally controlled analog trim for all analog inputs
  • Digital trim for all outputs
  • Output volume digital rotary encoder. Push to cycle among three modes: main out, phones, or both
  • Mic input digital rotary encoder for adjusting trim level, 48V and pad
  • Dedicated 3- or 4-segment LED meters for all inputs and outputs
  • Support for recording and playback at 2x sample rates (88.2 and 96 kHz)
  • CueMix FX no-latency mixing and monitoring with EQ and dynamics processing
  • 7-Band parametric EQ and compression
  • Instrument tuner
  • Test tone and white/pink noise generator
  • Advanced audio analysis software tools
  • 100% Compatible with all host-based effects processing in today's popular audio program
  • Industry standard Mac and Windows audio
  • Compatible with all current and recent generation Macs and PCs
  • Converters: 24-bit
  • Sample Rates: 44.1, 48, 88.2, 96kHz

Analog In

  • 1 x XLR mic input with preamp
  • 1 x 1/4" hi-Z guitar
  • 2 x 1/4" TRS phone (balanced/unbalanced)
  • 1 x 1/8" stereo "mini" (unbalanced)

Analog Outputs

  • 2 x 1/4" balanced TRS main out
  • 1 x 1/8" stereo "mini" line out (unbalanced)
  • 2 x 1/4" TRS headphone

Other Inputs/Outputs

  • Digital Output: 1 x RCA coaxial S/PDIF
  • Computer I/O : 1 x USB 2.0 "High-speed"
  • Sync Out: S/PDIF
  • Headphone Output: 1 x 1/4" TRS phone with volume control
  • Phantom Power: +48V

Top panel

  • 2 x 3-segment ladder LEDs • main outs
  • 1 x 4-segment LEDs • mic in
  • 1 x 4-segment LEDs • guitar in
  • 1 x 3-segment LEDs • line in
  • 2 x 3-segment LEDs • main out
  • 1 x 3-segment LEDs • line out
  • 1 x LED • 48V phantom power
  • 1 x LED • -20 dB pad
  • 2 x LEDs • main/phone vol
  • 1 x digital rotary encoder • mic trim
  • 1 x digital rotary encoder • main/phone volume

Other Specifications

  • Power Requirements: USB bus power

Mac System Requirements

  • PowerPC G4 CPU 1 GHz or faster (including any Mac with a PowerPC G5 or any Intel processor)
  • 1 GB RAM; 2 GB or more recommended
  • Mac OS X version 10.5, 10.6, or 10.7; v10.5.8 or later required
  • Available high-speed USB 2.0 port
  • A large hard drive (preferably at least 250 GB)

Windows System Requirements

  • 1 GHz Pentium-based PC compatible or faster equipped with at least one USB2 or FireWire port
  • 1 GB RAM; 2 GB or more recommended
  • Windows 7 or Vista, 32- or 64-bit; Vista SP 2 or later required
  • Available high-speed USB 2.0 port
  • A large hard drive (preferably at least 250 GB)
  • Included software
  • CueMix FX
  • AudioDesk (Mac only, optical CD drive required)
  • Operating Systems
  • Mac OS X version 10.5, 10.6, or 10.7 (v10.5.8 or later is required)
  • Windows 7 or Vista (SP2 or later is required)

64-Bit operation

  • Available for Mac OS X v10.6 or 10.7
  • Available for 64-bit versions of Windows 7 or Vista
  • Requires a 64-bit CPU (and host application for plug-in versions
