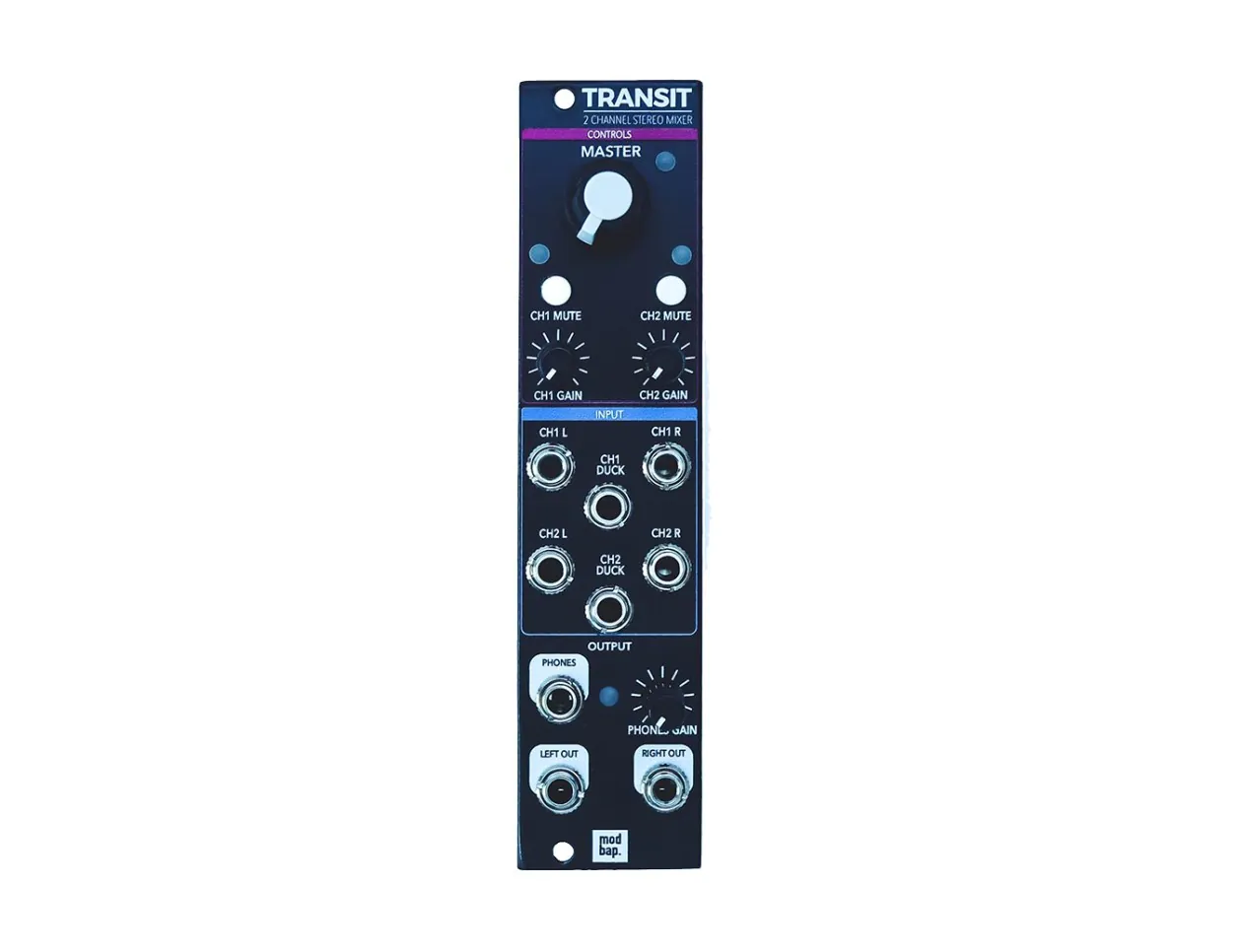

Modbap ModularTransit 2-Channel Stereo Mixer


In Stock Available immediately!
  • Free Shipping
  • No Hassle Returns
    No Hassle
  • Warranty
  • Low Price Guarantee'
    Low Prices

Modbap Modular Transit

Mix down your stereo instruments, effects, and buses with the compact and easy-to-use Transit from Modbap Modular, a two-channel stereo mixer module with unique performance features. Each of Transit's channels feature a gain control to amplify or reduce the level of an incoming signal as well as a CV ducking input for creatively controlling the level in a sidechain manner, be it with a trigger, gate, LFO, envelope, etc. The channel mute buttons and master level output are situated at the top for quick and easy performance access, great for gestures to pull in and out of your main mix or the overall mix of your modular system. Although the entire signal path is all-analog for no conversion issues down the line, Transit helps monitor your levels with digitally-controlled LEDs on all audio ins and outs with indication on signal level and mute-state. With an additional headphone output with individual level control, the Transit works well as your final block in your patch, as another section for layered mixing control, or even in chains for high-detail mixdowns before you record or perform live.

Transit Features

  • Stereo mixer module
  • Two independent stereo input channels
  • Gain control and mute button per channel
  • Two channel ducking CV inputs
  • Individual left and right outputs with a master level control
  • Stereo headphone output with independent level control
  • Digitally controlled LEDs to monitor levels (white/blue/purple level indication and red for mute indication)
  • All-analog signal path
  • Eurorack module
  • Width: 6hp
  • Depth: 25mm
  • Current draw: 50mA @ +12V, 50mA @ -12V
