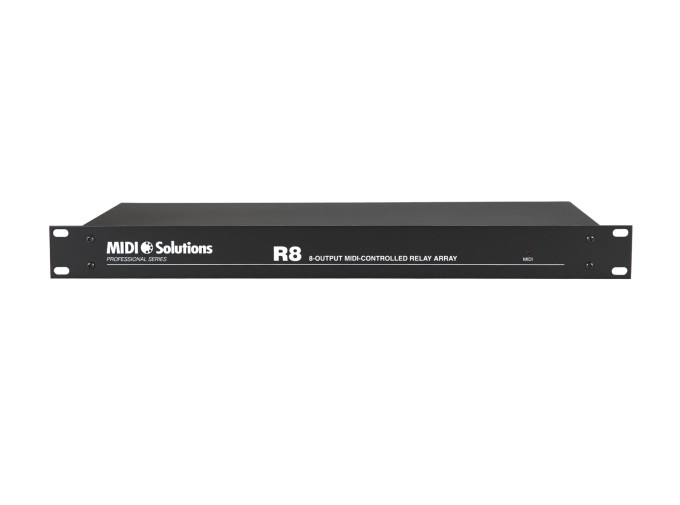

MIDI SolutionsR8 8-Output MIDI Controlled Relay Array

MIDI Solutions R8

The Relay Array from MIDI Solutions is the perfect solution for controlling your relays that can open or close in response to MIDI events. With eight outputs, you can connect almost any relay you'd like using a TS 1/4" jack and using 500mA or less power. These reed relays have a response time of less than 2ms and the entire device is powered via MIDI, so no external power sources are necessary. Slide this into your MIDI-centric 19" rack and add MIDI relay interaction to your setup with the R8 from MIDI Solutions.

R8 Features

• 8 Output MIDI relay array
• Response time of less than 2ms
• Relay contacts rated for 500mA
• 1/4" TS relay outputs
• Fuses for each channel
• MIDI powered
• LED indicator light for power and MIDI data passthrough observation
