Malekko Heavy IndustryQuad Gate Delay

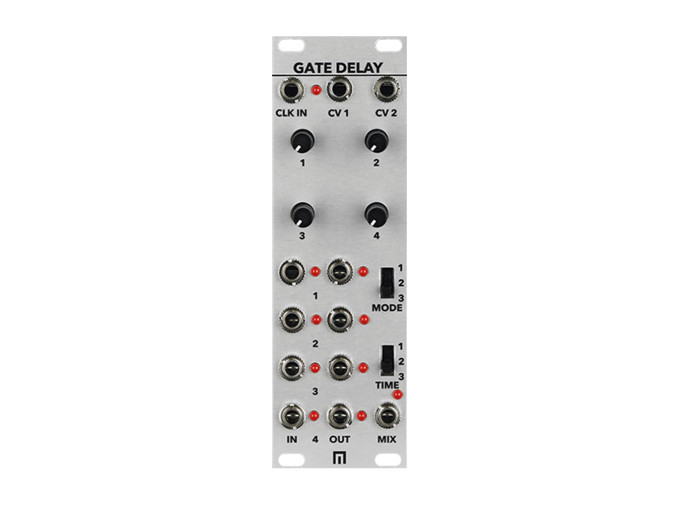

Malekko Quad Gate Delay

The Quad Gate Delay, from Malekko Heavy Industries, is a useful way to create rhythmic variations or chain a series of envelopes for a complex multi-stage volume contour. The gate delay style can be switched between tempo synced (both quantized and not), and millisecond delay. Channels 1 and 2 both have CV inputs for variations controlled by other signals. Gate Delays can also be chained, instead of each channel being a delay from an original clock, they can cascade down from one to the next. There is also a Mix output, that combines all four channels and sends a pulse anytime a gate goes high.

Quad Gate Delay Features

• 4-Channels of delayed outputs (+ inputs on each channel)
• 2 CV inputs for adjusting time of channels 1 and 2. Channels 3 and 4 are fixed.Clock input
• 3 Time mode settings with manual control: Milliseconds, Tempo Synced (unquantized) and Tempo Synced (quantized)
• 3 Normalling modes
• Mix function (sum) for all 4 outputs
• Pairs well with Varigate 4 and Varigate 8
