Low-Gain ElectronicsVariable Force Generator CV + Gate Controller - 3.5mm Jacks

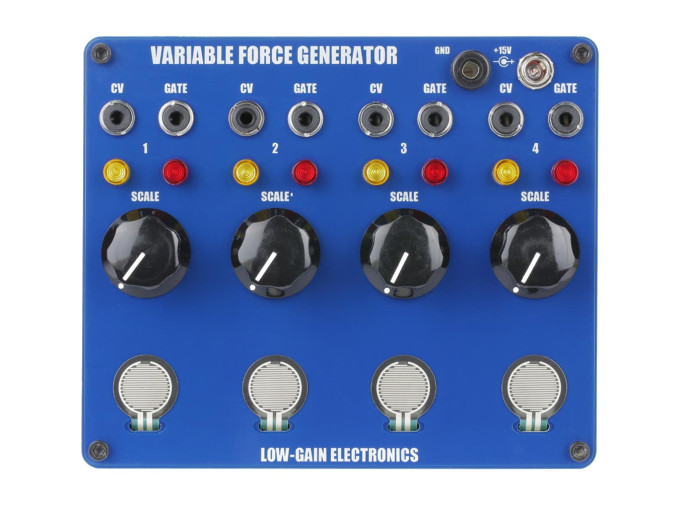

Low-Gain Electronics Variable Force Generator

The Variable Force Generator from Low Gain Electronics is an FSR-based CV and gate generator that adds tactile and expressive control to your patches. Each channel has a force-sensing resistor that reads the amount of pressure exerted and outputs a proportional CV output.

Scale the CV output from 0–11V to fine-tune the output range. In addition to CV signals, the VFG outputs gate signals when you press down on the FSRs. These gate signals feature 5V, 8V, or 10V output levels, depending on your needs. Get your finger drumming on, or dynamically open filters and VCAs; the Variable Force Generator is an excellent tool for controlling your synths.

Variable Force Generator Features

• FSR-based CV and gate generator
• Force sensing resistors detect how hard you press against them and output a CV
• CV can be scaled from 0–11V
• Gate output with 5, 8, or 10V level
• LEDs show CV and gate status
