Lindell Audio6X500 500 Series Mic Pre / EQ

Item#
N13-03362
$299.00

In Stock Available immediately!

  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

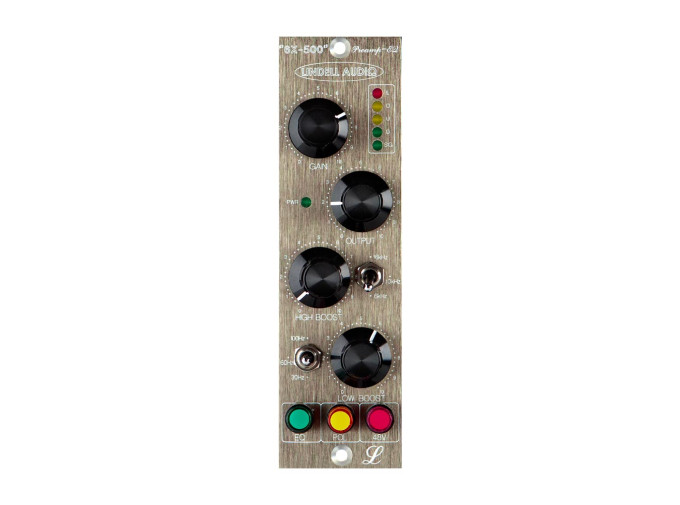

Lindell Audio 6X500

Lindell Audio's 6X-500 is a 500-series mic preamp and two-band EQ that provides punchy and dynamic performance. The design features transformer-coupled inputs and outputs and provides up to 65dB of gain. The EQ is a passive Pultec-style EQ with high and low bands with three frequency intervals per band and up to 15dB of boost.

Power your condenser mics right from the module using the onboard +48V phantom power. An onboard VU meter indicates when levels clip, providing instant visual feedback. This preamp and EQ provides dynamic, in-your-face performance that is sure to please.

6X500 Features

  • 500-series preamp and EQ
  • Pultec-style passive two-band EQ
  • Input and output gain controls add up to 65dB of gain
  • Low frequency EQ features +15dB of boost at 30Hz, 60Hz, or 100Hz
  • High frequency EQ features +15dB of boost at 6kHz, 10kHz, or 16kHz
  • LED VU meter indicates signal level
  • +48V phantom power
  • 180 degree phase reversal
  • Transformer balanced input and output
  • Gold-plated PCB
  • Connects to 500-series chassis with +/-16V and +48V power
  • Frequency response: 20Hz-20kHz
  • 5.25 x 7 x 1.5"/133 x 177 x 38mm
