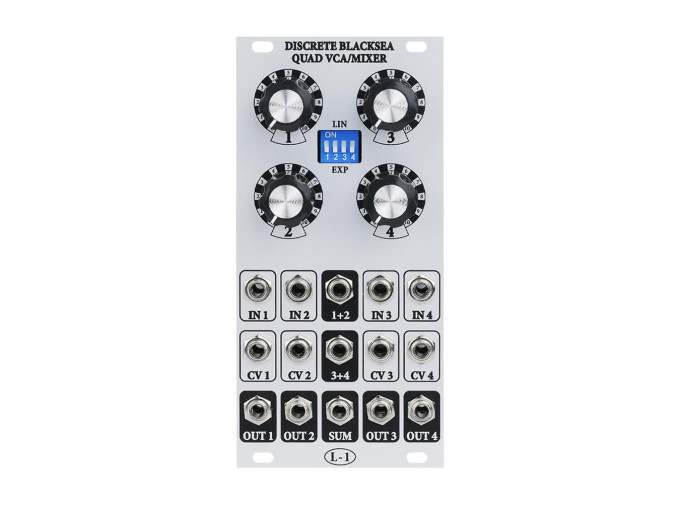

Discrete Blacksea Quad VCA / Mixer

L-1 Quad VCA/Mixer

With their Discrete Blacksea Quad VCA/Mixer, L-1 put significant effort into designing a superb VCA from discrete components matching the quality of the best, well-known chips available. Internally, it features four VCAs and a mixer; this combination allows the channels to be mixed as pairs or as a sum. Even better, each channel features its own output.

Quad VCA/Mixer Features

• 4 VCAs
• Mixer
• 4 Audio Inputs
• Linear/Exponential response per channel via DIP switch
• 4 CV Inputs
• 4 Individual Audio Outputs
• SUM Audio Output
• 1+2 Audio Output
• 3+4 Audio Output
