Korg Arp Odyssey Rev 3 Desktop Synthesizer Module

In Stock Available immediately!
  • Free Shipping
  • No Hassle Returns
  • Extended Warranty
  • Low Price Guarantee

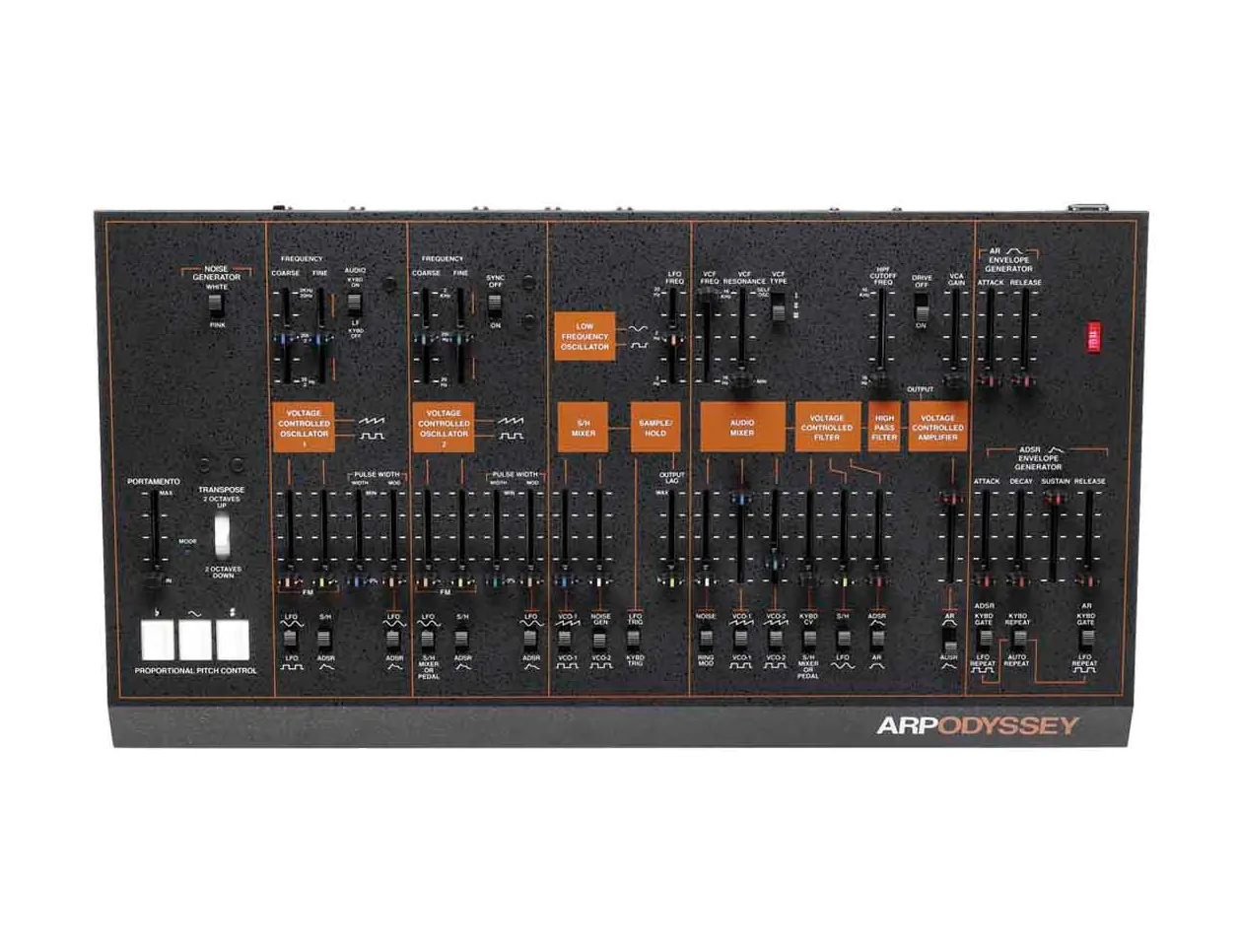

Korg Arp Odyssey Rev 3

Korg’s new Arp Odyssey Desktop Synthesizer was created in collaboration with David Friend, co-founder of ARP Instruments. The synthesizer’s design boasts a stellar reproduction of the Odyssey’s original circuitry, putting the Arp’s legendary sound at the fingertips of today’s musicians and sound designers. Despite its compact style, the layout of the Odyssey Rev 3 is a perfect reproduction of the original.

In comparison to its predecessor, the Arp Odyssey Rev 3 is lighter, more compact, and features the same classic analog sound. The module was designed for tabletop use and does not feature a keyboard, though it is playable by MIDI In. Users can use the synthesizer in duophonic or monophonic settings and have access to various CV, Gate, and Trigger ins/outs for clever interfacing with other modular gear.

Arp Odyssey Rev 3 Features

  • Maximum Polyphony: 2 voices for duophonic; normally monophonic
  • Transpose Positions: 2 octaves down, normal, 2 octave up
  • Proportional Pitch Control b (Pitch down)
  • Pad: about -2 / 3 octave - (Modulation) Pad # (Pitch-up) Pad: about +2 / 3 octave
  • Noise Generator Types (white and pink)
  • Portamento Maximum Speed about 0.01 msec./oct Minimum Speed about 1.5 sec./oct
  • VCO (Voltage Controlled Oscillator) Waveforms Sawtooth, Square, Pluse (Dynamic Pluse)
  • Frequency Range VCO-1 in low freq. mode, 0.2 Hz – 20 Hz: VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz
  • Warm Up Drift 1/30 semitone from turn on max
  • Pulse Width 50 % – 5 %
  • Pulse Width Modulation ADSR, +45 % LFO, +15 %
  • VCO-1 is low note priority, VCO-2 is high note priority.
  • VCF (Voltage Controlled Filter) Types Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
  • Frequency Range 16 Hz - 16 kHz
  • Maximum Usable Q 30
  • Resonance 1/2 - self oscillate
  • VCA (Voltage Controlled Amplifier) Dynamic Range 80 dB
  • Ring Modulator Type Digital, Input Signal VCO-1, VCO-2 (square wave)
  • Sample & Hold Command Sources Keyboard or LFO trigger, Sampled Signals VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise
  • ADSR Envelope Generator Attack Time 5 msec. - 5 sec. Decay Time 10 msec. - 8 sec. Sutatin Level 0 - 100 % or Peak Release Time 15 msec. - 10 sec.
  • AR Envelope Generator Attack Time 5 msec. - 5 sec. Release Time 10 msec. - 8 sec.
  • Control Input Jacks Pedal 6.3 mm monaural phone jack
  • Portamento Foot Switch 6.3 mm monaural phone jack
  • Audio Output Jacks 6.3 mm monaural phone jack, XLR connector, Headphones Jack
  • External Audio Input Jack Connector 6.3 mm monaural phone jack Maximum Input Level -10 dBu Input Impedance 22 k ohm
  • MIDI Connector IN USB Connector Type B
  • CV IN/OUT Jacks Keyboard CV (IN/OUT) 1 V/oct. Connector 3.5 mm monaural phone jack
  • GATE IN/OUT Jacks GATE IN +3 V (minimum)
  • GATE OUT +10 V, key down; 0 V all keys up Connector 3.5 mm monaural phone jack
  • TRIG IN/OUT Jacks TRIG IN +3 V pulse min., 10 μsec. Duration minimum TRIG OUT +10 V pulse on key depression, 10 μsec. Duration Connector 3.5 mm monaural phone jack
  • Power Supply AC adapter jack (DC 9V)
  • Power Consumption 6.5 W
  • Dimensions (W x D x H) 496 x 265 x 89 mm / 19.53” x 10.43” x 3.50”
  • Weight 3.7 kg / 8.16 lbs
  • Design White (ARP ODYSSEY Module Rev1), Black and Orange (ARP ODYSSEY Module Rev3)
  • Included Items AC adapter, phone cable, mini-phone cable
