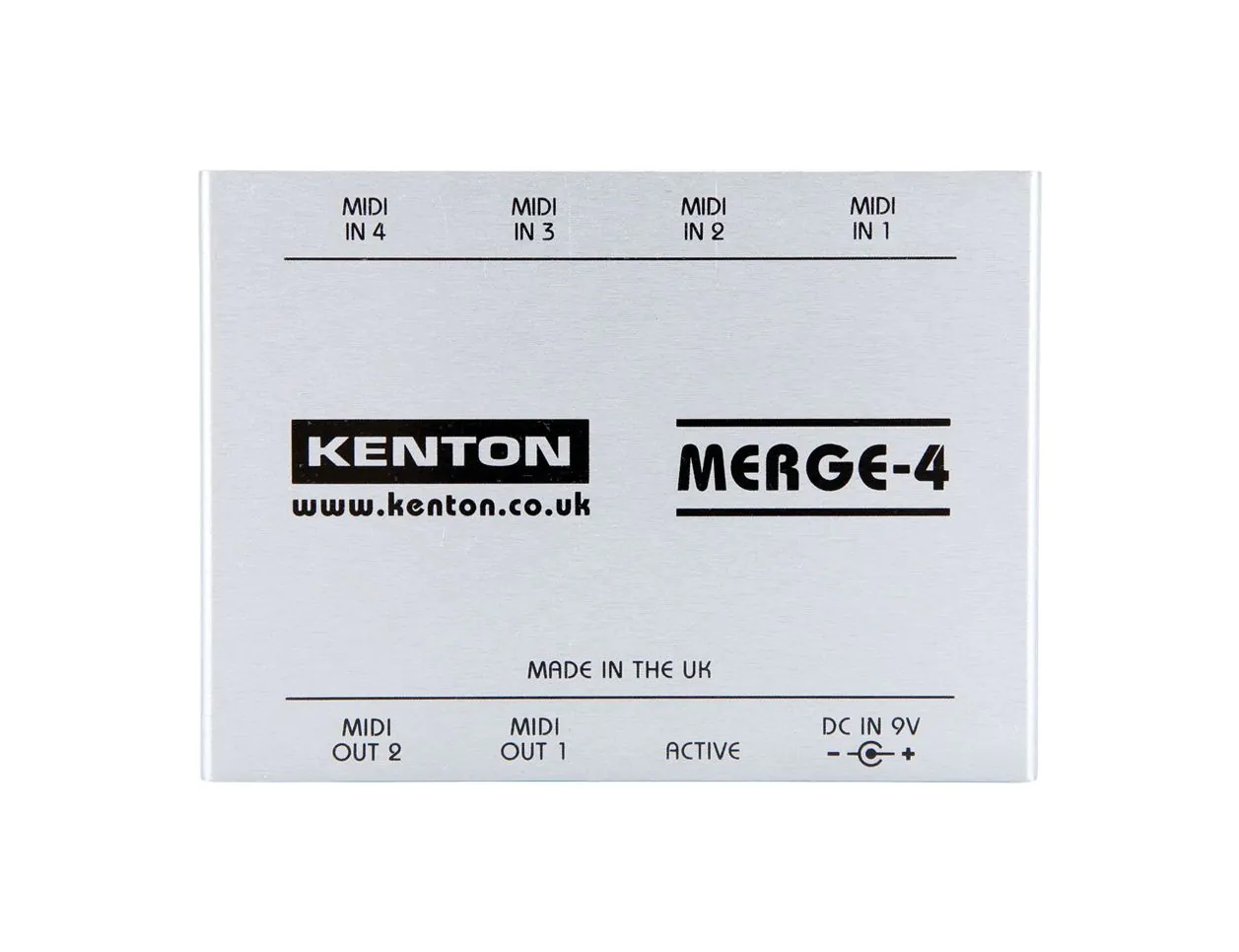

Kenton Merge-4

The Kenton Merge-4 combines data from four individual MIDI sources to form a single data stream that is then routed to both of its MIDI outs. The unit features four opts-isolated MIDI inputs, and two MIDI outputs.

Merge-4 Features

  • 4 opto-isolated MIDI Ins and 2 MIDI Outs.
  • 4 x MIDI IN
  • 2 x MIDI OUT (both carry the same MIDI data
  • Merges all data
  • DC power input jack 2.1mm (center +)
  • Power indicator light
  • 9V unregulated power supply included
  • Housed in a metal box so it can withstand the knocks

  • Power:  9V DC
  • Dimensions:  110 x 80 x 32mm
  • Weight:  150g
  • MIDI:  4 x In, 2 x Out
  • Power Supply:  9V DC + center
