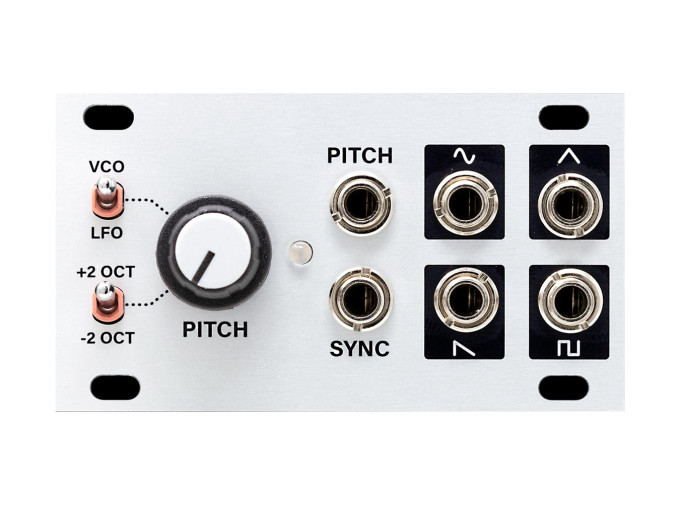

Intellijel Designs VCO 1U

Sneak in an extra voice or modulation source with the 14HP VCO 1U from Intellijel. Built around an analog triangle core oscillator, the VCO 1U is syncable, capable of LFO rates, and produces four simultaneous waveforms: sine, triangle, square, and sawtooth. A handy octave switch makes it easy to jump through the VCO-mode's three octave range or the LFO-mode's seven octave range. At 14HP, this can find its way into any system without sacrificing too much space.

VCO 1U Features

  • Analog Triangle Core Oscillator
  • Four Simultaneous Waveform Outputs (sine, triangle, square, and sawtooth)
  • SYNC input for Hard Sync With Comparator
  • VCO or LFO Speeds
  • Three Position Octave Switch
  • Bicolor LED indicating Rate
  • Eurorack module
  • Width: 14hp
  • Depth: 38mm
  • Current draw: 19mA @ +12 / 16mA @ -12
