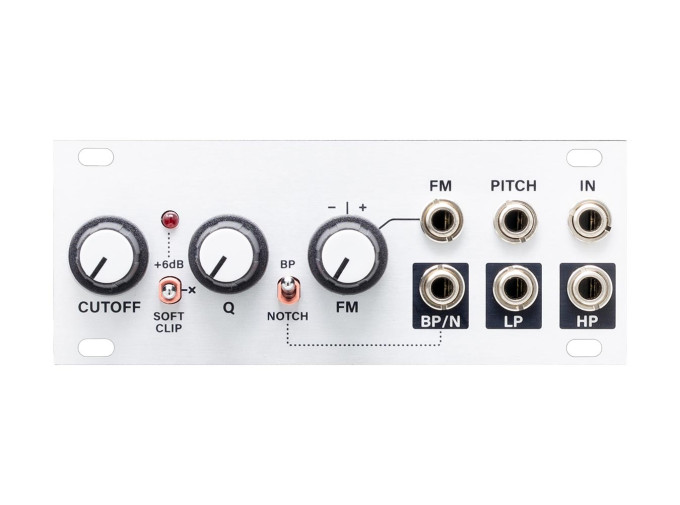

Intellijel Designs SVF 1U

Stash a handy filter into your Intellijel 1U row with the SVF 1U, a multimode filter with a variety of responses and simultaneous outputs. With dedicated two-pole lowpass and highpass filter outputs, you can route different sections of processed audio to multiple destinations in your patch. There's also a switchable bandpass or notch output, ensuring that you always have at least one of those options available without needing a second filter or external mixing. For some additional color, a +6dB soft clipping circuit is available for tasty filter drive. And of course, crank up the resonance to self-oscillation for a handy sine wave oscillator. Pack in a filter where you least expect it with SVF 1U from Intellijel.

SVF 1U Features

  • Multimode state-variable filter in 1U
  • 12dB/Oct lowpass and highpass outputs
  • Assignable bandpass or notch output
  • Optional 6dB boost + asymmetrical clipping circuit
  • Sine wave oscillator when self-oscillating
  • Tracks pitch across 4 octaves
  • Eurorack module
  • Width: 20hp
  • Depth: 35mm
  • Current draw: 27mA @ +12V, 30mA @ -12V
