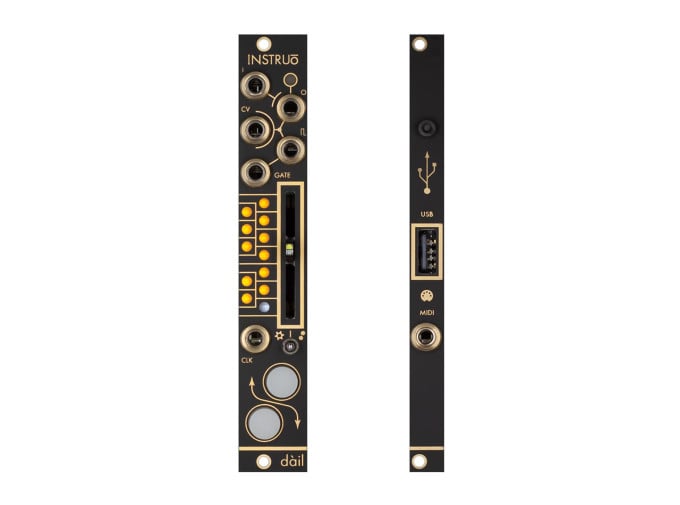

Instruo Dàil

Instruo's Dàil puts the power of MIDI-CV conversion with robust quantization and precision adding at your disposal, all in an astoundingly compact package. With the included MIDI Expander module, Dàil is ready to process any source from CV, 5-pin/TRS MIDI, or USB MIDI. Define scales with the onboard keyboard-like buttons, or use external MIDI to assign valid notes. Additionally, you can transpose the input with chromatic precision and still have access to the original via the parallel buffered output. Best of all, Dàil is capable of processing and generating bipolar signals, ensuring that any arpeggio or chord may be played and processed with ease. Bring a small and easy to use quantizer and MIDI-CV interface to your rack with Dàil from Instruo.

Dàil Features

  • Compact MIDI-CV interface + pitch quantizer and precision adder
  • Scales defined on the module or via external MIDI
  • Parallel transposition output
  • Capable of bipolar signal ranges
  • Includes 2hp MIDI Expander for TRS or USB MIDI sources
  • USB MIDI Host functionality
  • Supports TRS Type A and Type B MIDI—Type A adapter included in the box
  • Eurorack module
  • Width: 4hp
  • Depth: 32mm
  • Current draw: 100mA @ +12V, 8mA @ -12V
