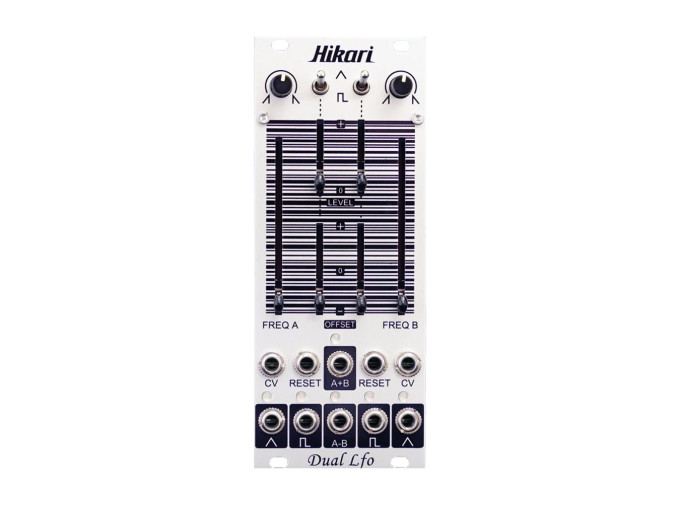

Hikari Instruments Dual LFO

Hikari Instruments' Dual LFO is a deceptively simple LFO that is perfect for standard modulation duties, but can be self patched for wild waveforms and pushed into audio rate. Each LFO has its own independent set of sliders for Frequency, Level and Offset, which is incredibly helpful if you have a smaller system with limited attenuators or a mixture of unipolar and bipolar inputs. Both LFOs have simultaneous square and triangle wave outputs plus an added A-B outputs that sums LFO A with an inverted waveform of LFO B along with an A+B output sum both waveforms. The triangle LFO also features a waveform skew knob that will transform the triangle shape from a saw–tri–ramp and a waveform switch lets you choose if triangle or pulse waveforms are sent to the A+B and A-B outputs.

Using the jumper settings on the back, you can push the LFO into audio rate territory and have a nice, experimental oscillator. These jumper settings are independent for each oscillator and the CV inputs for the frequency do not track 1V/Oct. With a ton of handy features and patch points, the Hikari Instruments Dual LFO is a great utility to add to your Eurorack system.

Dual LFO Features

  • 2x Independant LFO or Audio rate triangle core oscillators
  • Frequency, Level, and Offset controls for each oscillator
  • Simultaneous outputs for Pulse and Triangle outputs
  • A+B summed output
  • A-B LFO A summed with inverted LFO B output
  • Waveform skew control for each oscillator
  • A+B/A-B pulse or triangle LFO switch
  • Jumper settings on back shift from LFO rate to audio rate
  • Eurorack module
  • Width: 10hp
  • Depth: 27mm
  • Current draw: 80mA @ +12V, 80mA @ -12V
