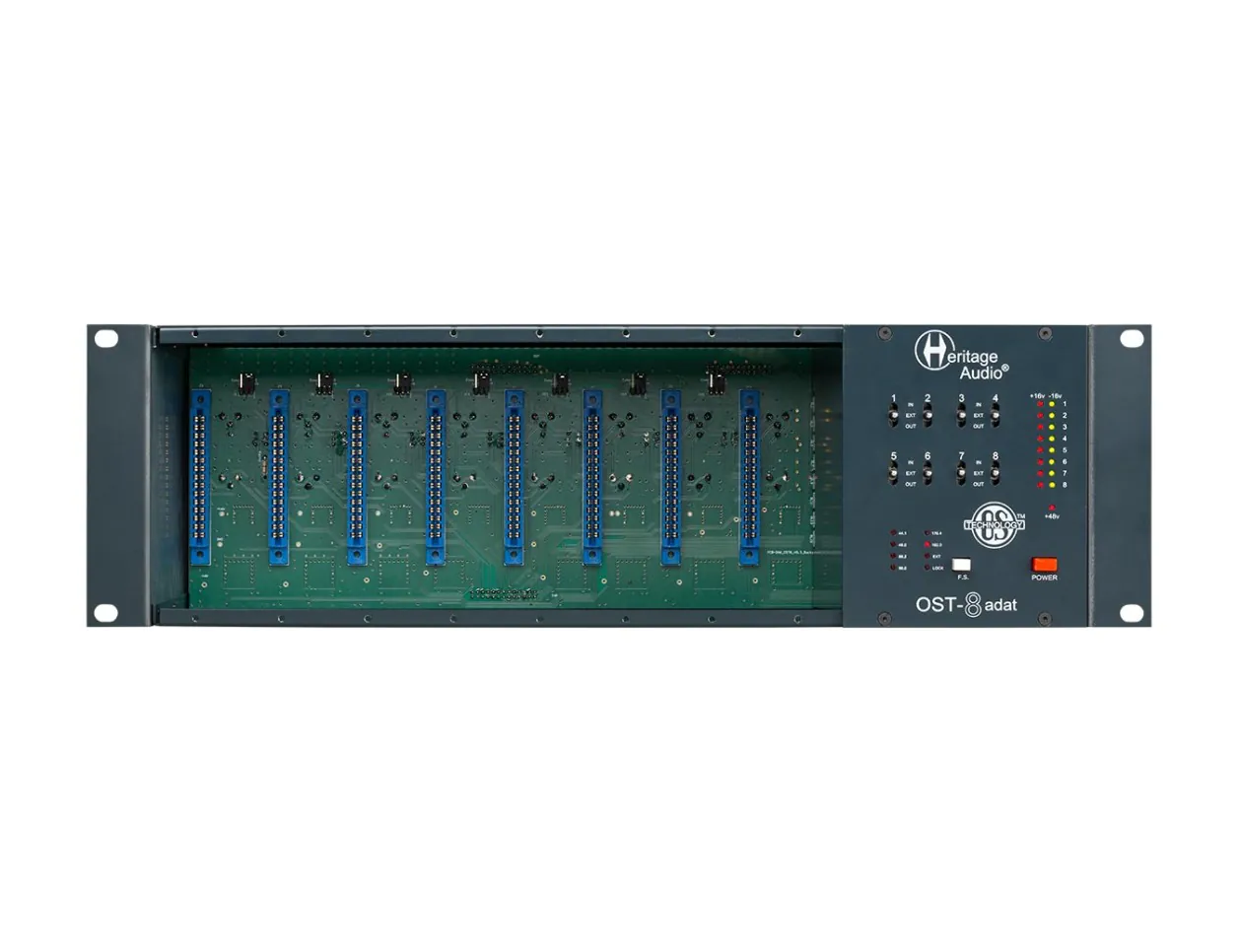

Heritage AudioOST8-ADAT 500 Series Enclosure

Item#
N13-05685
$999.00

Preorder New release—reserve yours today!

  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty

Heritage Audio OST8-ADAT

Easily combine 500-series modules with your DAW by using the OST-8 ADAT 500 series chassis from Heritage Audio. Built for use with 500 series modules, you can mount up to 8 different preamps, EQ, compressors, or effects. Unlike other chassis, this features digital outputs via ADAT at sampling rates up to 192 kHz. Each channel also has a three-way switch that passes either the direct input, channel output, or return loop input to the ADC. This feature makes it a breeze to add additional processing units to your signal before recording to your DAW. BNC Word Clock connections are also available and each channel can link to the next. The OST-8 from Heritage Audio is a fantastic rack mount unit for anyone looking to integrate 500 series equipment into their workflow.

OST8-ADAT Features

  • 8-Channel 500 series case
  • Digital ADAT output via optical TOSLINK
  • Channel linking
  • DB25 connections for input, output, and external return
  • Word Clock with 75 ohm termination switch
  • Three-way switchable input for direct feed, module output, or external effects loop
  • Power: PSU included
  • 19" Rack mount at 3U of space
  • Dimensions: 5.3x6.7x19 in
  • Weight: 10.4 lbs
  • Maximum audio rails current: 1.8A per rail or 400mA per rail per slot, whatever is reached first
  • Maximum phantom power current: 140mA
  • ADAT Specs: Optical TOSLINK connections, ADAT Digital Lightpipe with S/MUX, and supported sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • ADAT Channel Assignments: 44.1 kHz, 48 kHz, Port 1 = Channels 1 – 8, Port 2 = 1 – 8 (mirrored), 88.2 kHz, 96 kHz, Port 1 = Channels 1 – 4, Port 2 = Channels 5 – 8, 176.4 kHz, 192 kHz, Port 1 = Channels 1 – 2, Port 2 = Channels 3 – 4
  • Word Clock: BNC with input termination at 75 ohms
