Hazelrigg Industries VDI
The VDI Tube Direct Injection Box from Hazelrigg Industries is a single-channel vacuum tube direct box, bringing the warm and round sound of tube circuitry to bass, monosynths, guitars and more. In a robust and low-profile steel chassis, the streamlined design is as simple as a DI can be, making it that much easier to get set up on stage and in the studio. Based on D.W. Fearn's legendary VT-1/F design and decades of tube-know-how, the VDI is a premium DI for professional musicians, engineers, and dedicated hobbyists.

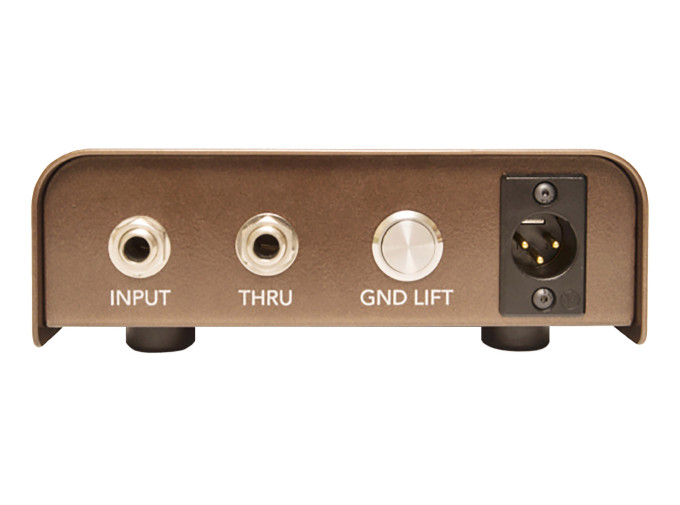

On the front panel, 1/4" instrument input and thru connectors are perfect for passing the signal directly to an amplifier. A mic level output is provided via an XLR connector for sending to your outboard preamp or main console. Additionally, a ground lift is available for dealing with ground loops when they arise. While the operation is dead simple, the sound is far from it, imparting depth and richness to any audio source. If you love the sound of tubes and need a solid DI for premium recording and performance, look no further than the VDI from Hazelrigg Industries.
VDI Features
- Single-channel vacuum tube DI box
- DI circuit based on the VT-7 design by D.W. Fearn
- All-tube signal path
- Steel chassis for rugged and reliable performance
- 1/4" instrument input and thru output
- XLR mic-level output
- Dimensions: 6.25" x 2.25" x 9.5" / 159 x 57 x 242 mm
- Power: standard IEC connection (IEC cable included)
- Weight: 6 lbs / 2.73 kg
- Input: 200 mV unbalanced
- Input load impedance: 1 Megohm
- Gain: -10dB
- Frequency response: +/- 0.2 dB 10 cps to 20 kc, -3 dB @ 0.5 cps and 95 kc
- THD + Noise: <0.3% 20 cps to 20 kc
- Noise: min. 90dB below output
- Output: transformer balanced
- Max output level: -12 dBm
