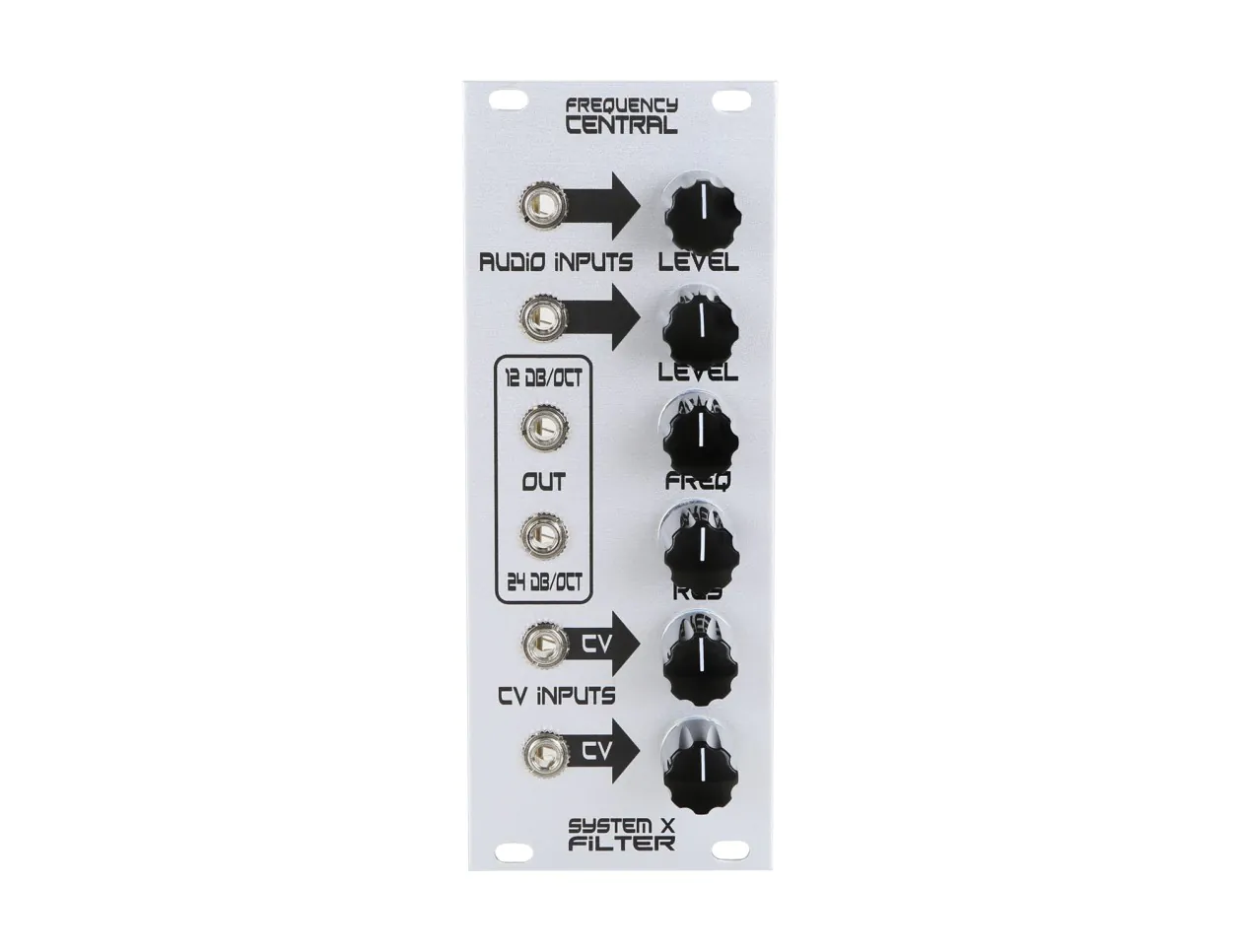

Frequency Central System X Filter

The Frequency Central System X filter is essentially a clone of the Roland System 100 VCF, albeit optimized for the Eurorack format. It makes use of 4 ca3080s and features an extra 12dB/Oct output that is 180 degrees out of phase with the 24dB/Oct out. This means users can mix the two outputs together for bandpass operation.

System X Filter Features

• 2 Audio Inputs w/ Controls
• 12 dB/Oct Out
• 24 dB/Oct Out
• 2 CV Inputs
• Cutoff Control
• Resonance Control
