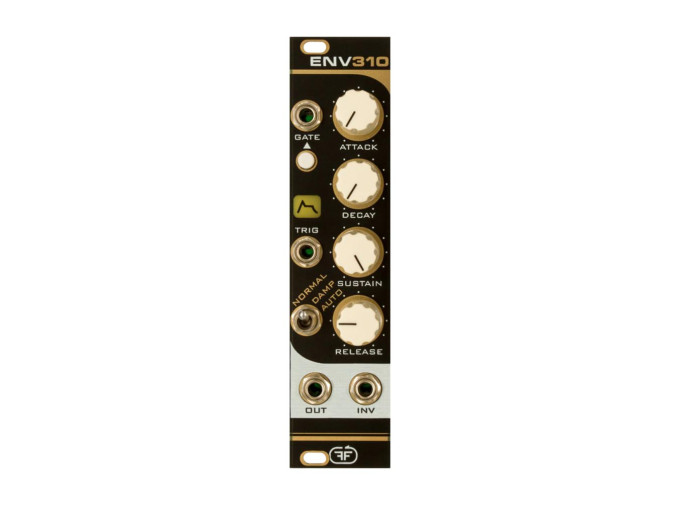

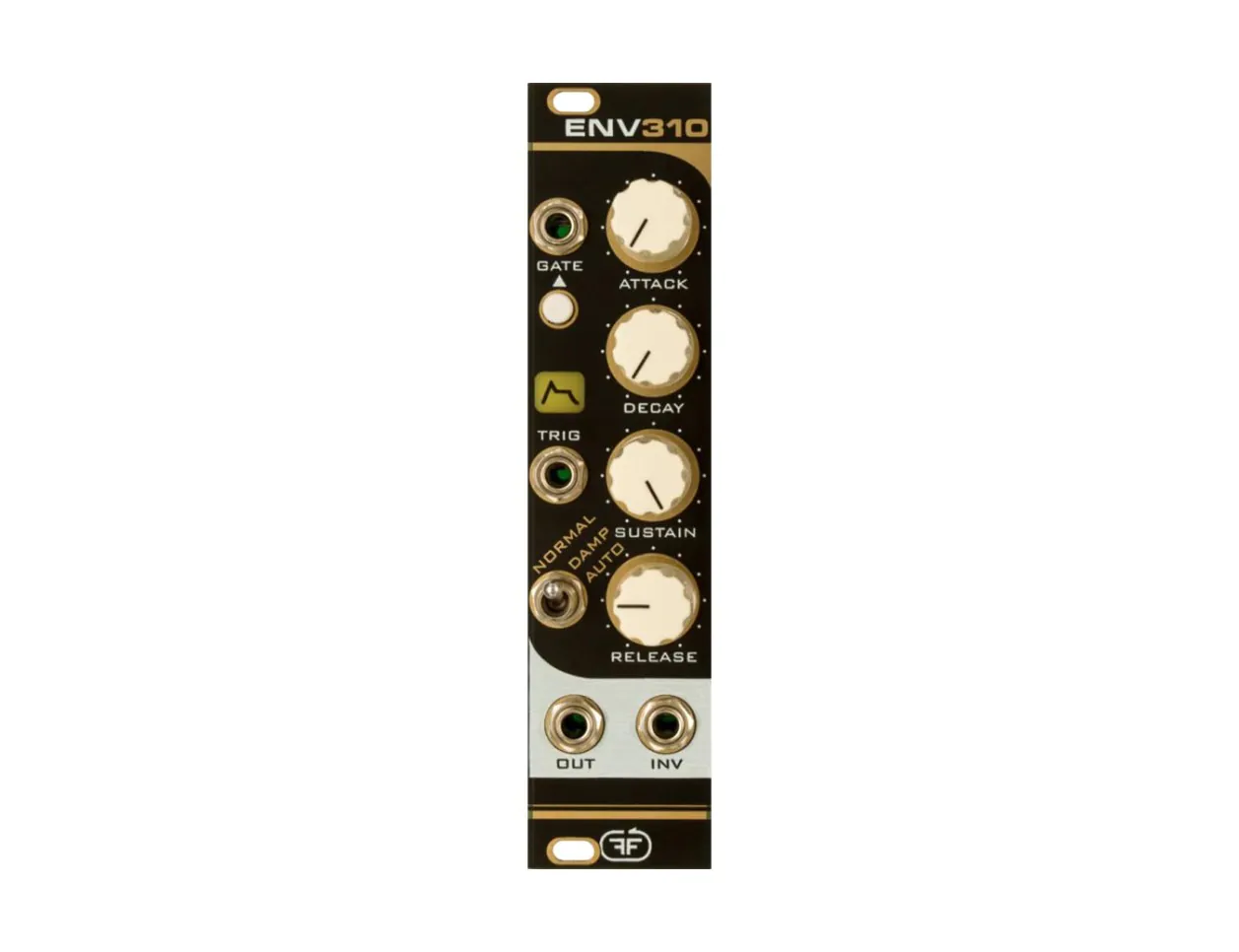

Feedback ModulesENV-310 ADSR Envelope Generator

Feedback Modules ENV-310

Feedback's ENV-310 is an envelope generator with a surprising amount of versatility for something so small, including an inverted output and three different modes. In addition to the standard Gate input, a secondary Trigger input lets you add complex modulation. Three modes give you normal ADSR functionality, Cycling, and a unique "Damp" (ADRR) that emulates a Piano's natural envelope: the Gate's length affects the first release's time and the end of gate triggers the final release. For a unique single envelope generator that is quite flexible, Feedback Modules' ENV-310 is a great option.

ENV-310 Features

• Envelope generator based on Curtis CEM3310 chip
• Gate input with manual push button
• Retrigger input
• Envelope times range from 2ms to 20s
• Inverted output
• 3x Modes: ADSR, ADRR, and Auto
• ADRR Envelope mimics a piano's natural release: Gate length adjusts the first release stage's length
