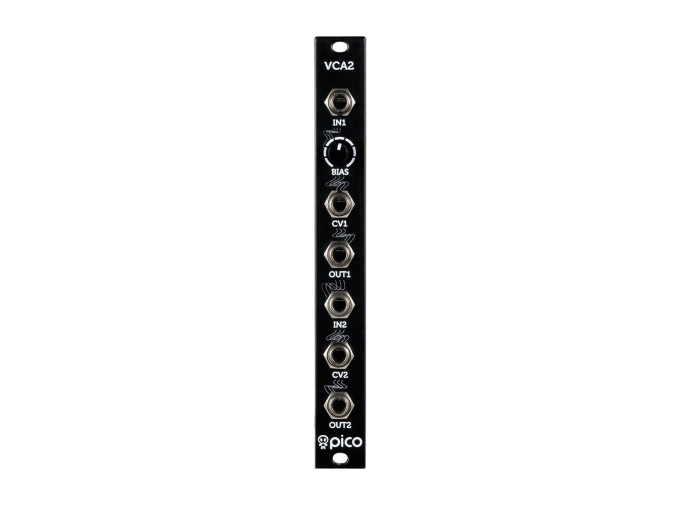

Erica Synths Pico VCA2

Erica Synths packed two VCAs in a compact package with the Pico VCA2, a useful utility for any Eurorack modular synthesizer. Based around the trusty AS3330 VCA chip, Pico VCA2 offers precise level adjustment with little distortion.

Channel 1 features a bias control to offset the gain of the signal from silence, allowing you to tailor how it sits in the mix before a CV signal modulates it. VCA2 features normalization from both the signal and CV inputs from the first channel to the second. Use this as a buffered signal splitter or control one signal's amplitude with two CV sources and send it to two destinations.

Not only does the VCA2 work with audio signals, but thanks to DC coupling, it works with CV signals as well. There's no such thing as too many VCAs, and the Pico VCA2 packs two in a 3HP footprint.

Pico VCA2 Features

  • Dual VCA
  • Uses the AS3330 VCA chip
  • Channel 1 features bias offset
  • Both inputs are DC coupled for use with both audio and CV signals
  • Normalization between the two channels for both signal input and CV input
  • Eurorack module
  • Width: 3hp
  • Depth: 35mm
  • Current draw: 20mA @ +12V, 19mA @ -12V
