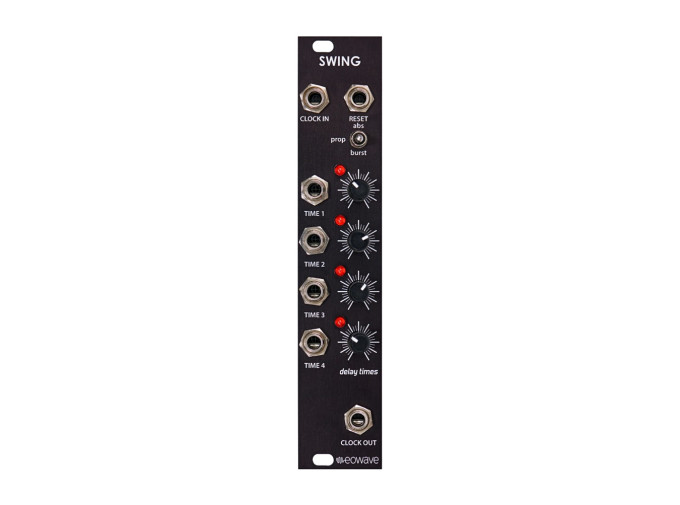

Eowave Swing

The Eowave Swing is a shuffling clock module which takes an incoming clock signal and sequentially shifts pulses in time with manually-controllable delay per step. This performance-oriented module is ideal for adding a "human" feel to static four-on-the-floor rhythms, while Absolute mode snaps the sequence back to the basic clock input and Burst creates rolls and fills. Excellent for creating rhythmic variation from incoming clocks, the Swing turns even simple pulses and gate sequences into timing control for multiple voices or other gate-driven processes.

Swing Features

  • Four-step trigger sequencer with adjustable delay per step
  • LED indicators for each step
  • Absolute, Prop, and Burst modes
  • Summed clock output
  • Individual inputs for modulating each gate delay stage
  • Eurorack module
  • Width: 5hp
  • Depth: 25mm
  • Current draw: 34mA @ +12V, 0mA @ -12V
