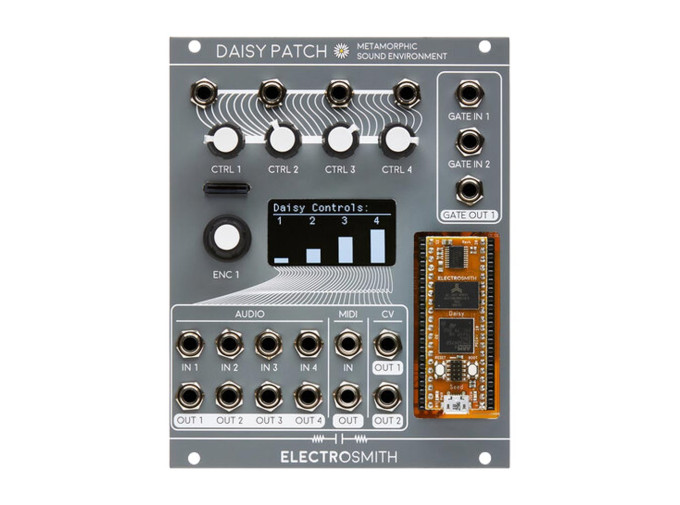

Electrosmith Daisy Patch

Electrosmith brings the power of creating Eurorack modules to the people with the Daisy Patch. Utilizing Electrosmith's Daisy audio development platform, Daisy Patch is a fully operational modular interface with functionality determined by the program running on the Daisy. Several example programs are available to showcase the versatility of the Daisy platform, including oscillators, reverbs, envelope generators, and more. Programs are primarily written in the C++ programming language, but Electrosmith has built in support for Max/MSP Gen~ patches, compiled Pure Data patches, Arduino library-wrappers, and more, with documentation and guides available online to help anyone get started, regardless of prior experience with programming.

The Daisy Patch module offers immediate access to the power of Daisy with your existing Eurorack system, with no need for breadboards or designing your own circuits. Four channels of modular level audio I/O offers the flexibility to design polyphonic oscillators, multi-channel samplers or effects processors, and more. Patch also provides four knobs and several inputs and outputs for CV, gates, as well as 3.5mm TRS MIDI, and a handy OLED screen makes for easy information display when programming and performing. Plant the seeds of your programming journey with the Daisy Patch, and bloom into designing your own modules.

Daisy Patch Features

• Eurorack module utilizing the open-source Daisy audio development platform
• Programmable functionality
• 4 audio inputs and outputs capable of handling modular signal levels
• 4 knobs and 4 CV inputs, 2 CV outputs
• 2 gate inputs, 1 gate output
• TRS MIDI I/O
• Bright OLED display
• SD Card slot
• Documentation and examples available at the Electrosmith GitHub page
