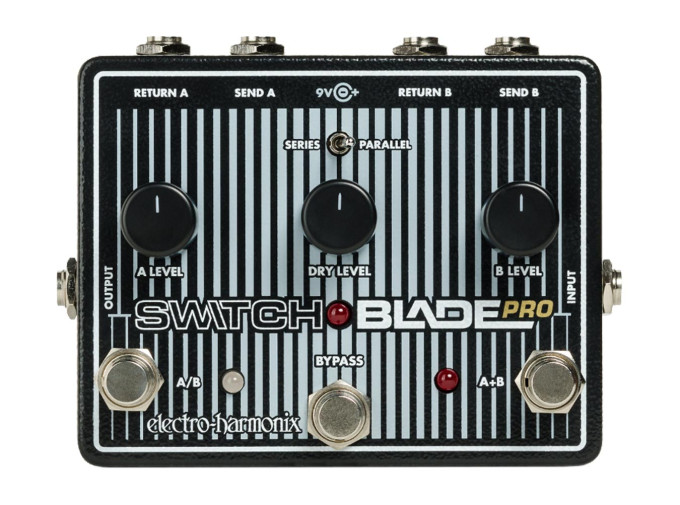

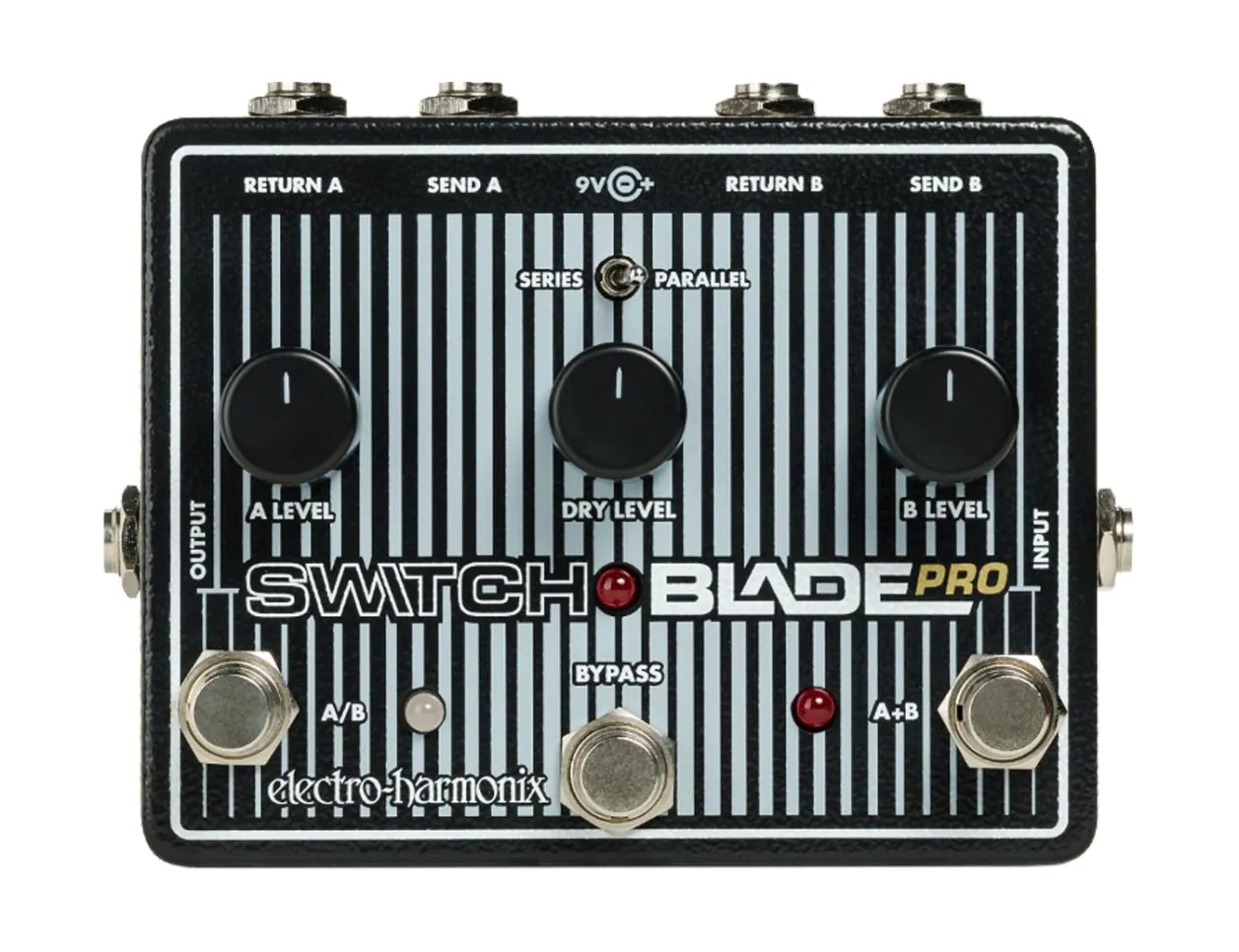

Switchblade Pro Effect Pedal Signal Router

EHX Switchblade Pro Effect Pedal Signal Router

The Electro-Harmonix Switchblade Pro is a deluxe switching box with several configurations for flexible signal routing. It features a pair of effects loops with send and return jacks, as well as a level controls.

A switch determines the routing, whether the two effects loops are in series or parallel. In series mode, the signal flow moves from one effects loop to the other linearly, with the A/B footswitch determining which loop is first in the chain. In parallel mode, the input signal runs into both effects loops at the same time. The A+B footswitch mixes both signals together at the output. With the A+B disengaged, the A/B footswitch will choose one effects loop or the other. Disengage both effects loop with the bypass footswitch.

Switchblade Pro is also configurable as both a three-input mixer and a three-output signal router. This effects loop and signal switcher is a fantastic way to add versatile signal routing to your effects setup.

Switchblade Pro Features

• Signal router and effects loop
• Two effects loops with level controls
• Series or parallel routing
• A+B and A/B footswitches
• Level controls add up to +6dB of gain
• Send one input signal to two different amps
• Mix up to three instruments together
• Dry level control
