EarthQuaker DevicesSpatial Delivery V2 Envelope Filter Pedal

Item#
N13-7990
$199.00

Out of Stock Reserve your order today!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty

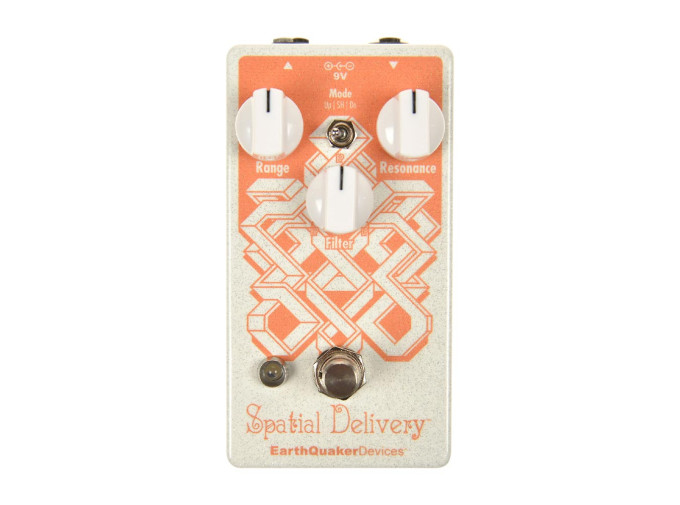

Earthquaker Spatial Delivery V2 Envelope Filter Pedal

The renowned Spatial Delivery envelope filter with integrated sample & hold is now available with flex-function switching!

At its core, Spatial Delivery is a three-mode envelope filter under full voltage control. The three modes are Upward Filter Sweep, Downward Filter Sweep, and Sample & Hold. The first two are versatile tone sweeps with different filter types, while the latter slaves a filter to a random voltage for a sequence of sputtering gasps that never fail to keep things interesting.

Spatial Delivery v2 Features

  • VC envelope filter
  • True bypass
  • Flex-function switching
  • Range, resonance, and filter controls
  • Sample & hold filter modulation
  • Power: 9v DC with 2.1mm negative center barrel
  • Current Draw: 69mA
  • Input impedance: 500K
  • Output impedance: <1K
  • Dimensions: 4.75" x 2.50" x 2.25" with knobs
SignalRelated ArticlesDigitech's XP-300: Into the Space StationRevisiting a Cult Favorite Oddball Guitar PedalEarthquaker Devices: Greatest HitsOur Favorite Effects Pedals from EQD
Product Demo Videos
EarthQuaker Devices Spatial Delivery Envelope Filter with Sample & Hold
The Spatial Delivery is an oddball, a voltage controlled envelope filter that allows you to step outside the universe of funk while reinforcing your secret love affair with auto-wah. It has 3 modes- Up Sweep, Down Sweep and Sample and Hold. With Range, Resonance and Filter controls you can get super emphasized filter sweeps in the Up and Down modes. The Range, in combination with pick attack, controls the sensitivity and reaction time of the envelope and thus the width of the frequency sweep. The higher the Range and harder the attack equals a faster reaction time and higher frequency sweep and vice versa. Reign in the controls a bit, add your favorite overdrive/fuzz after the Spatial Delivery and you've got a real nice resonant, cut-through-the-mix lead tone. Crank the controls back up and you're a neo-bedroom rock god. In the Sample and Hold mode the filter is controlled by random voltage and the Range controls the speed. Add a sub octave into the mix (before or after) and you've just created a deep fried space droid computer freak-out. The filter can be cross faded between high pass (counter clockwise), band pass (center) and low pass (clockwise) for a wide variety of voices. The Resonance control goes from zero to the brink of oscillation and adds more body and ring to the filter voice. We recommend placing the Spatial Delivery first in your signal chain. However, due to its envelope control, experimenting with pairing and signal chain placement can take the potential of the Spatial Delivery even further. Each Spatial Delivery is hand made bit by damn bit in silver studded Akron Ohio.
