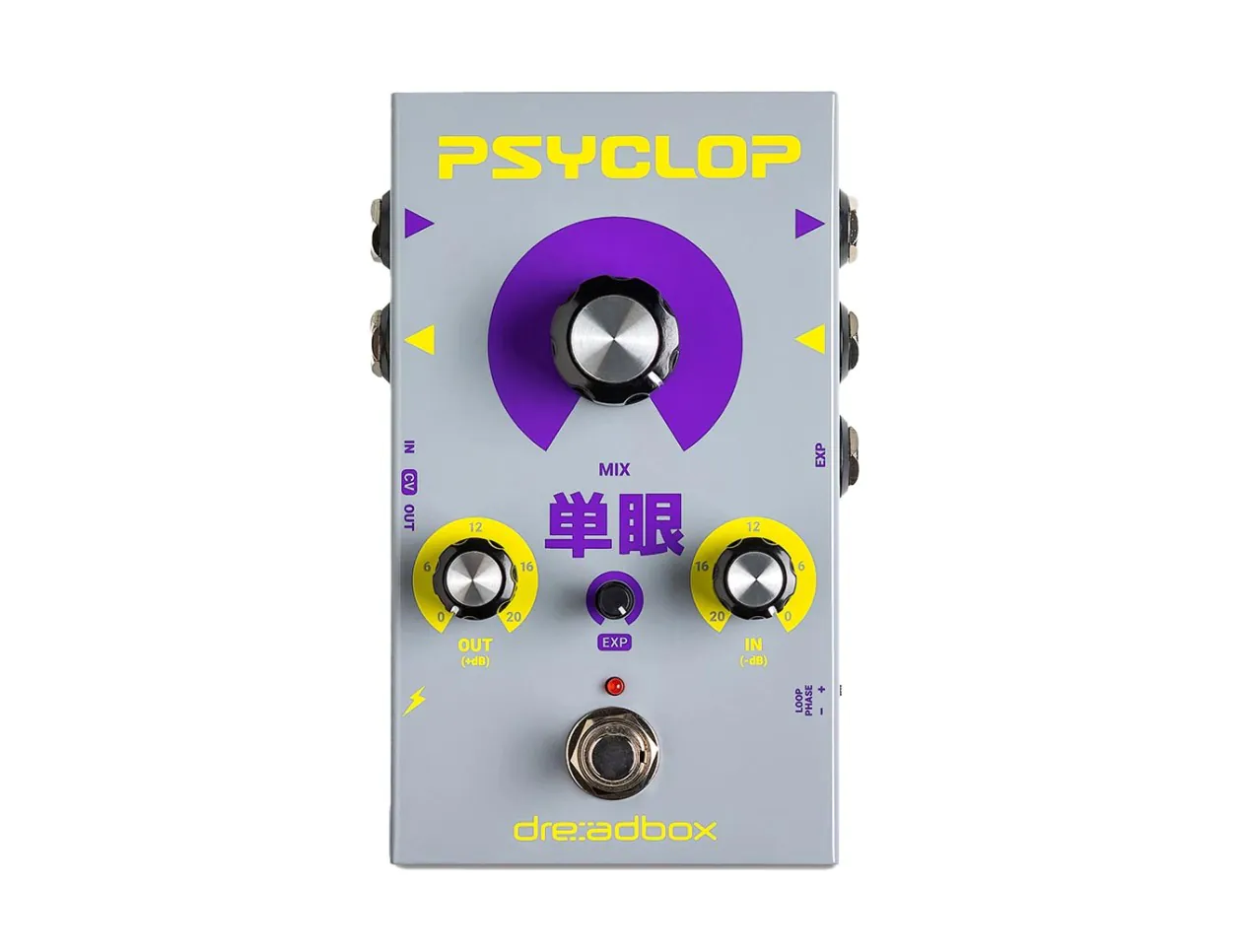

DreadboxPsyclop Signal Multi-Tool Pedal

Dreadbox Psyclop

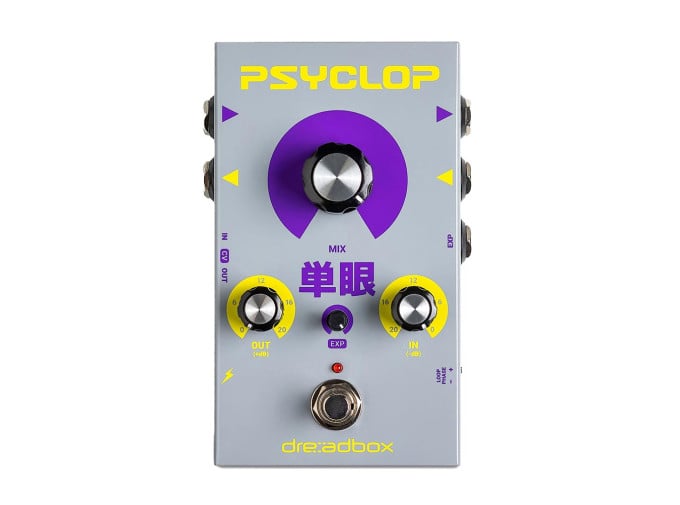

Psyclop from Dreadbox is a signal Swiss Army knife, offering an effects loop, mixing, boosting, attenuation, and expression-to-CV conversion for the ultimate pedalboard multi-tool. Capable of handling both longer effects chains and single pedals, Psyclop is sure to extend the functionality of any pedal board. Jacks marked with yellow triangles are for your main audio input and output, while purple triangle jacks give you input and output for an effect loop. In and Out controls affect their respective attenuation/gain stages, with unity gain achievable by setting Out to 0% and In to 100%. The Mix control sets the relative mix of the effect loop and main input, perfect for dry/wet control or simply mixing two parallel effects chains.

The Psyclop is a great way to interface between pedals and CV-enabled gear, providing both expression to CV conversion as well as expression pedal control over an external CV signal. With nothing plugged into the CV input, the CV output will send between 0 and 5V, depending on the expression pedal position and amount of CV attenuation set by the Exp control. With CV applied to the Psyclop's CV input, the expression pedal acts as an attenuator for the CV output. Ideal for hybridized pedal/synth set ups, CV-enabled guitar rigs, or anyone looking to push their effects pedals a bit further, Psyclop from Dreadbox is a signal problem-solver worth keeping an eye on.

Psyclop Features

• Signal Multi-tool pedal with effects loop and expression-to-CV conversion
• Mono main input/output with -20dB input attenuation and +20dB output gain
• Mono effect loop with Mix control
• Expression-to-CV converter for sending 0-5V with a TRS type expression pedal
• When using CV input, expression pedal attenuates the external signal at the CV output
• True relay bypass
• CV input maximum: +/-12V
