DoepferA-179-2 Light-Controlled CV/Gate Source

Item#
N13-04428
4hp
$89.00

Backorder Reserve your order today!

Out of Stock

We're awaiting our next batch of this item. Pre-order to reserve your place in line and we'll fulfill your order as soon as we receive our shipment
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

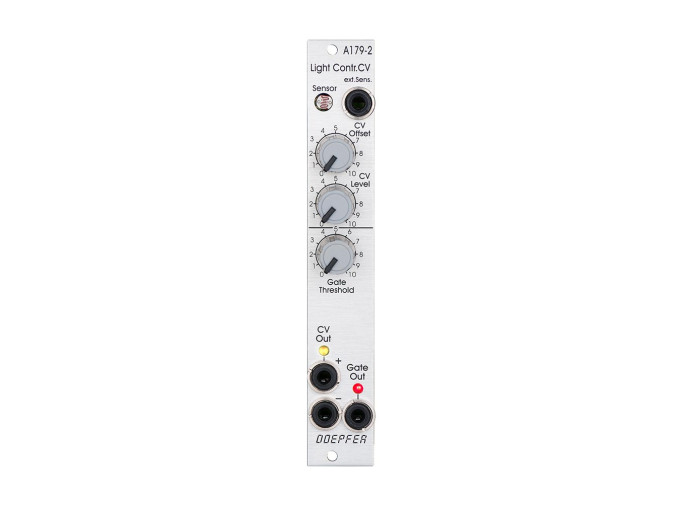

Doepfer A-179-2

Doepfer's A-179-2 is a Light-to-CV controller with a built-in photoresistor that generates CV and gates. A simple idea that can become helpful in many performances or installations, the A-179-2 sends out higher voltage when more light is applied and fires off a gate at a specific threshold. There's also an inverted CV output, so you can have brighter light dip the voltage down instead. An external sensor is provided with a 2 meter patch cable, so your light source is not bound to your rack. Three knobs offer control over CV offset, CV level, and gate threshold to dial in the right amount of interaction. Grab an A-179-2 for a different dimension of interaction with your system.

A-179-2 Features

  • Light-to-CV controller
  • Built-in photoresistor with input for external photoresistor (included)
  • Positive and inverted CV outputs
  • Gate output with threshold adjustment knob
  • Offset and level controls for CV
  • Eurorack module
  • Width: 4hp
  • Depth: 30mm
  • Current draw: +10mA @ +12V / -10mA @ -12V
