DoepferA-149-4 Quad Random Voltage Source

Item#
N13-04427
4hp
$169.00

In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

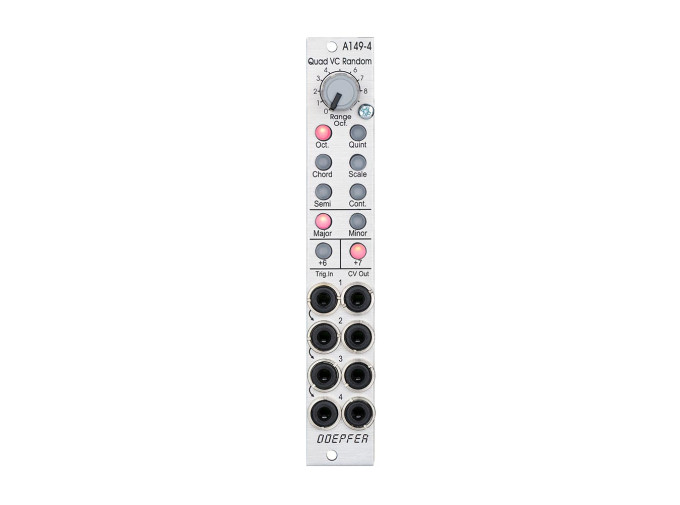

Doepfer A-149-4

Random generators are one of the joys in the modular world and the A-149-4 from Doepfer offers four channels of such joy in both unquantized and quantized varieties. For quantization, there are many options selectable via illuminated buttons: octaves, quints (octaves and fifths), chord, scale, semi (chromatic), and continuous (unquantized). For the first four options you can choose whether to engage sixths and sevenths, and for chord and scale options you can choose between major or minor. The only knob on the module controls how great the octave range is and the trigger inputs are normalized downward, so you can generate four random voltages off of one trigger. For generating musical passages quickly, or just creating a bit of a uncertainty, the A-149-4 is a great choice.

A-149-4 Features

  • Quad random voltage source
  • Quantized or unquantized options available
  • Octave range knob
  • Selectable major/minor scales and chords, octaves, octaves and fifths, or chromatic
  • Add or omit 6ths and 7ths with scale, chords, octaves, and quints selected
  • Trigger inputs are normalized downward
  • Eurorack module
  • Width: 4hp
  • Depth: 50mm
  • Current draw: +50mA @ +12V / -10mA @ -12V
