DoepferA-145-4 Quad LFO (Slim Line)

Item#
C21-0699
4hp
As low as $99.00
Multiple Options Make a selection for stock info
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

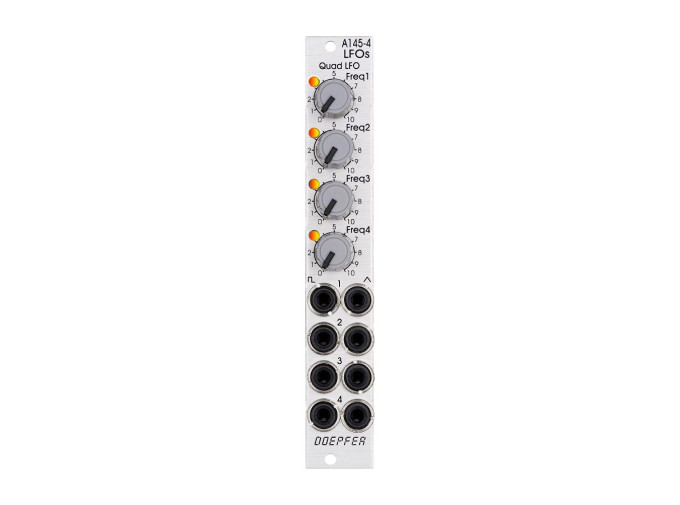

Doepfer A-145-4

Doepfer's A-145-5 Slim Line Quad LFO provides four independent LFOs in just 4hp, great for scenarios that require a ton of modulation in a tiny space. Each LFO provides an independent rate control and simultaneous square and triangle wave outputs.

By default, the LFO rates range from ~25 seconds per cycle to 50Hz, but by removing a jumper at the rear of the panel, ranges can be shifted down to a range of ~8 minutes per cycle to 2Hz.

A-145-4 Features

  • Quad LFO in only 4hp
  • Frequency control for each LFO
  • Simultaneous Square and triangle outputs for each LFO
  • Default LFO range: ~25 seconds per cycle to 50Hz
  • Extended range via jumper: ~8 minutes per cycle to 2Hz
  • Eurorack module
  • Width: 4hp
  • Depth:
    • Eurorack module
    • Width: 4hp
    • Depth: 30 mm
    • Current draw: 30 mA @ +12V,30 mA @ -12V
