Doepfer A-100G6

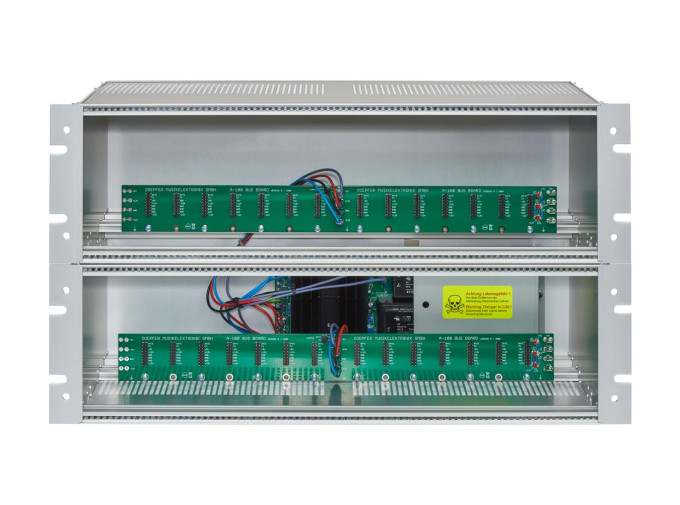

Doepfer’s A-100G6 features two rows of 84HP. It comes equipped with a built-in power supply and two bus boards, for a total of 28 headers. The case is especially handy as it can be rack mounted in most standard 6U 19” racks.

A-100G6 Features

  • Size: 6U (2 x 3U)
  • Width: 84 HP
  • Available Depth for modules: ~ 140 mm
  • Available Current: 2000mA @ +12V, 1200mA @ -12V, 2A @ +5V (via Doepfer PSU3)
  • Dimensions in mm: outside ~ 482 width x 266 height x 240 depth (incl. 19"" mounting angles); outside ~ 445 width x 266 height x 240 depth (without 19"" mounting angles); inside ~ 425 width x 245 height x 235 depth
  • This item is compatible with M3 threaded screws.
  • Maximum module depth: 100mm
  • Minimum module depth: 70mm
  • Available Current: 2000mA @ +12V, 1200mA @ -12V, 4000mA @ +5V
  • Dimensions: 482 x 266 x 240mm
  • External power: Mains in via IEC
