Doepfer A-100 LC9 Low Cost Case

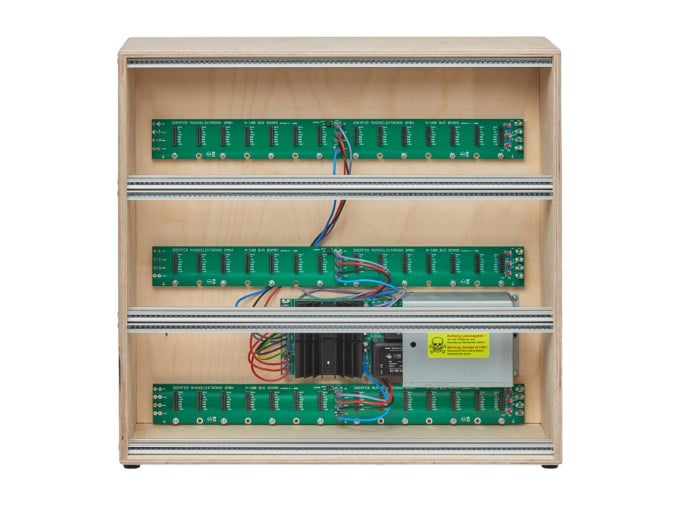

Doepfer's A-100 LC( Low Cost 9U Case features three 84HP rows for storing all of ones favorite Eurorack modules. It comes equipped with a single power supply and three bus boards with a total of 42 power headers.

A-100 LC9 Low Cost Case Features

  • Dimensions: approx. 445mm (width) x 420mm (height) x 160mm (depth)
  • Weight (without modules): about 5.2 kg, ~11.5 lbs
  • Size: 3 x 84 HP
  • Three bus boards
  • Usable depth for A-100 modules: approx. 80 mm in the power supply area (bottom right), resp. approx. 110 mm in the remaining area (measured from inner side of the front panel until end of the pc board of the module)
  • 42 Power headers for module connection
  • Available current: 2000mA @ +12V, 1200mA @ -12V, 4000 mA @ +5V
  • This item is compatible with M3 threaded screws.
    • Maximum module depth: 110mm
    • Minimum module depth: 80mm
    • Available Current: 2000mA @ +12V, 1200mA @ -12V, 4000mA @ +5V
    • Dimensions: 445 x 420 x 160mm
    • Weight w/out modules: 5.2kg
    • External power: Mains in via IEC
