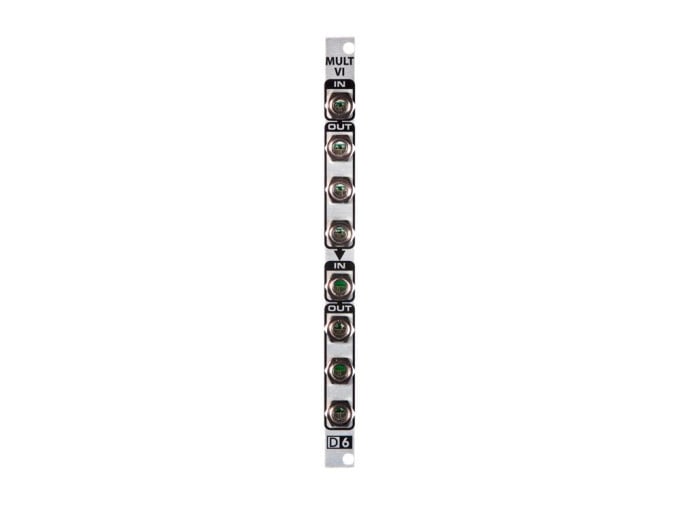

Division 6 Multiplicity VI

Multiplicity VI is a buffered multiple that solves an age-old problem: maintaining the integrity of a signal as it is patched to multiple locations. Even better, since the module's channels are cascaded users have a large number of ways with which to split a signal. If a signal is patched into the first input then it will be available at all six outs. If another signal is introduced to the second input that channel is removed from the chain, causing signal one to emit from three outputs and the second to travel through the remaining outs.

Multiplicity VI Features

  • Cascaded channels
  • Protects against signal degradation
  • Power supply: +/- 12 VDC (reverse-polarity protected!)
  • Power draw: 16ma / 16ma
  • Width: 2HP or 3HP
  • Depth: 1.77in / 45mm
