dbx131s 31-Band Graphic Equalizer

Item#
N13-01832
$239.00

Backorder Reserve your order today!

Out of Stock

We're awaiting our next batch of this item. Pre-order to reserve your place in line and we'll fulfill your order as soon as we receive our shipment
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

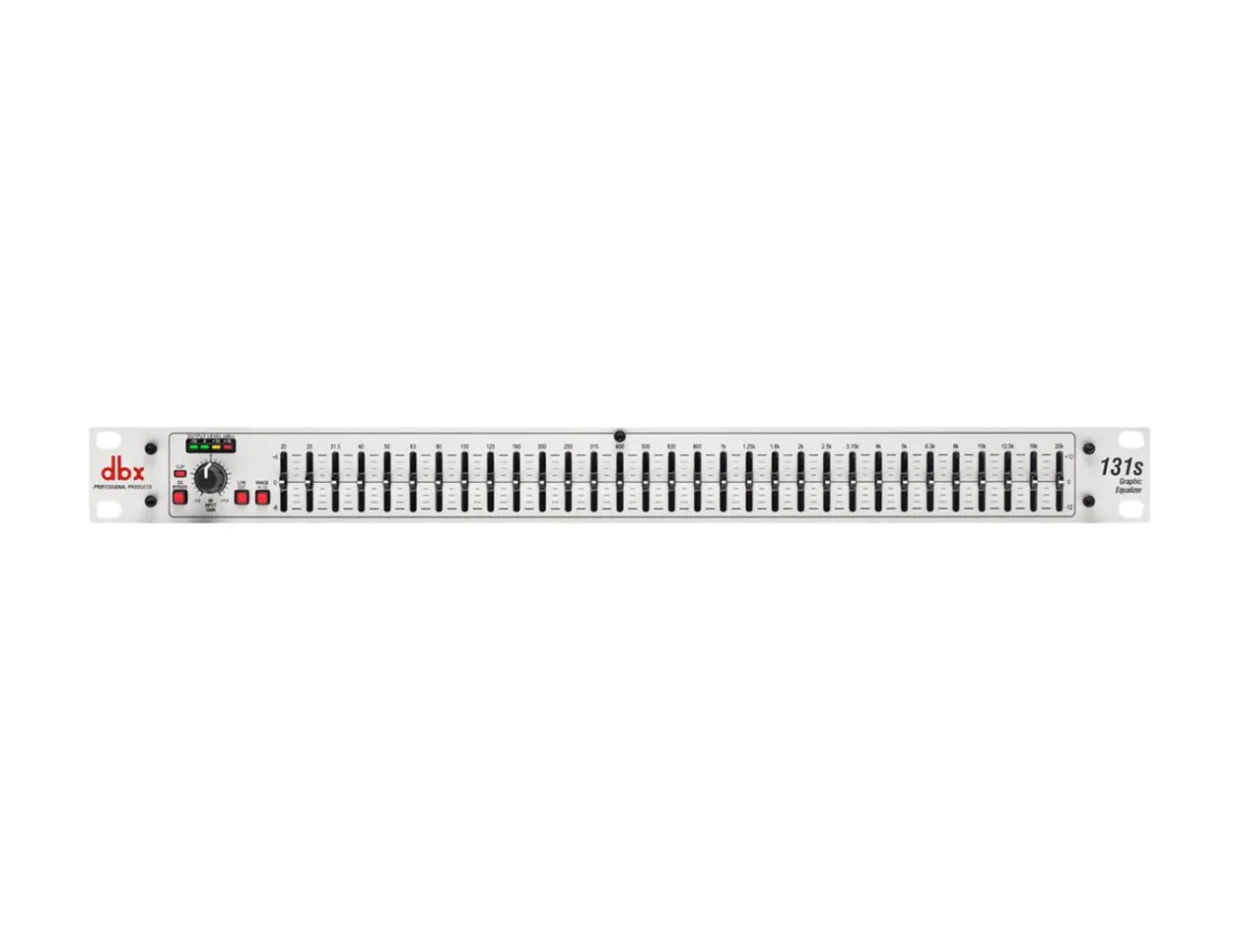

dbx 131s

The dbx 131s is a 31-band graphic EQ that gives direct tactile control of the frequency bands of your audio signals, allowing you to emphasize or deemphasize certain parts of the audio spectrum. The EQ bands are divided in 1/3 octave bands from 20Hz to 20kHz which are switchable between +/-6dB and +/-12dB boost/cut. This allows for fine control over the frequency content or wider, more dramatic shifts in the EQing.

Inputs and outputs are available on both TRS and XLR and feature +/-12dB of gain as well as 110dB dynamic range. The wide frequency response spans from 10Hz–50kHz, well above and below the range of human hearing. The 131s lives up to the standards set by DBX, a stunning EQ with an intuitive interface that sounds great and is easy to use.

131s Features

  • 31-band graphic EQ
  • Bands divided into 1/3 octave intervals
  • Switchable +/-6dB or +/-12dB boost or cut on each channel
  • +/-12dB of input gain
  • 20mm sliders
  • 110 dB dynamic range
  • Front panel bypass switch
  • LED monitoring of output level
  • 10Hz to 50kHz frequency response
  • 50Hz low cut filter
  • XLR and TRS inputs and outputs
  • Analog Inputs: 1/4" TRS, XLR
  • Input Impedance: 40 kOhm balanced, 20 kOhm unbalanced
  • Analog Outputs: 1/4" TRS, XLR
  • Output Impedance: 100 Ohm balanced, 50 Ohm unbalanced
  • Power: 15W at 100-230VAC
  • Dimensions: 1.75 x 19 x 6"
  • Weight: 4.8 lbs.
