Dangerous Music2-BUS+ Analog Summing Mixer

Item#
N13-4594
$3,199.00

Preorder Reserve your order today!

Out of Stock

We're awaiting our next batch of this item. Pre-order to reserve your place in line and we'll fulfill your order as soon as we receive our shipment
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty

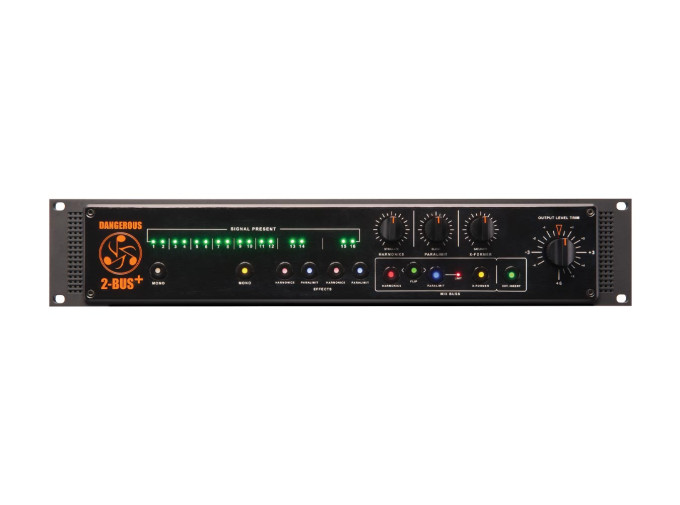

Dangerous Music 2-BUS+

The Dangerous Music 2-BUS+ is an analog summing mixer and colorizer, perfect for combining signals and imparting a rich analog tone to them without losing any dimension. It uses an active analog summing circuit that helps ensure incredible headroom and huge soundstage. Preserve the presence of your mix and keep the clarity alive.

In addition to summing, the 2-BUS+ also features three coloring circuits to impart sonic interest to your signals. "Harmonics" is a fantastic-sounding even and odd-order distortion generator; "Paralimit" is a crunchy FET-style limiter; and "X-Former" is an overdrive circuit that uses Cinemag output transformers. These can affect individual channel pairs or the entire mix, with the ability to flip the patching order on the fly and blend back in with the original signal via knob turn.

The 2-BUS+ excels at a variety of tasks, from clean mixing to harmonically rich distorted signals—and best of all, it keeps everything in between easily accessible from the front panel.

2-BUS+ Features

  • Analog summer and colorizer
  • Fantastic presence and headroom
  • 16 inputs on XLR and D-Sub 25
  • Harmonic distortion
  • Paralimit FET-style limiter
  • X-Former transformer based overdrive
  • Routing and blending controls
  • Switchable analog stereo inserts
  • Inputs: 2x DB-25, 2x XLR
  • Outpus: 2x XLR main, 2x XLR monitor
  • Send/Return: 2x XLR Send, 2x XLR Return
  • Frequency response: 10Hz-50kHz within 0.1dB
  • Max input level: >+28dBu
  • THD+N @ +4dBu: 1kHz, unweighted, 22Hz-22kHz < 0.0048%
  • THD+N @ +22dBu: 1kHz, unweighted, 22Hz-22kHz < 0.0026%
  • IMD @ +4dBu <0.0038%
  • IMD @ +22dBu <0.0021%
  • Crosstalk rejection: > 108dBu @ 1kHz
  • Noise at Unity Gain: 22Hz-22kHz < -86dBu
  • Noise at nominal mix setting: 22Hz-22kHz < -91dBu
  • Impedances: 25,000 Ohms balanced input, 50 Ohms balanced output
  • Replacement fuses: Americas: 90-120VAC 2 Amp Slo-Blo fuse. Europe: 200-250VAC 1 Amp Slo-Blo fuse
  • Dimensions: 3.5 x 19"
