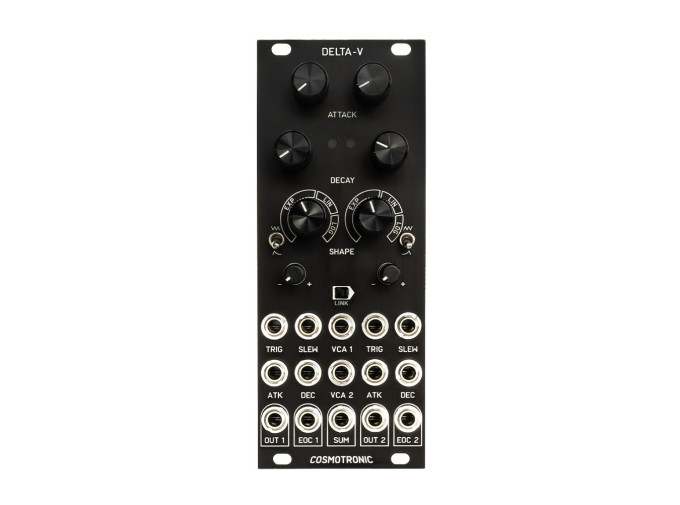

CosmotronicDelta-V Function Generator
The Cosmotronic Delta-V is a two-channel analog function generator great for making envelopes, LFOs, and adding slew to control voltages. Delta-V’s outputs are sculpted using the attack, decay, shape, and amplitude controls. There is a trigger input for creating attack/decay envelopes and a slew input for adding portamento to CV or generating attack/sustain/release envelopes from gate signals.
Both envelopes have looping functionality and an end of cycle gate output. Further animation of the Delta-V can be achieved using the attack and decay CV inputs. The Delta-V features two VCA inputs. If an audio rate signal is applied to the VCA input, the envelope will modulate its amplitude. If a sub-audio signal is input at the VCA, it will control the amplitude of the envelope.
- Two channel function generator
- Attack and decay controls with CV control
- Shape and amplitude knobs
- Looping switch to initiate LFO functionality
- VCA for amplitude modulation of external audio signals or VCAing the envelopes
- End of cycle outputs
- Trigger or slew inputs
- Eurorack module
- Width: 10hp
- Depth: 27mm
- Current draw: 65mA @ +12v, 65mA @ -12v
Bionic Lester MkIII is a dual digital filter inspired by the golden era of Virtual Analog synthesis: two filters with mode morphing, preset memory, and overdrive at the input, providing conventional lowpass, highpass, and bandpass, as well as the opportunity for comb filtering, intense feedback, multi-peak filtering, and more. The vpme.de QD is a quad digital drum module that can act as a sample player, wavetable oscillator, or digital drum modeler. Cosmotronic's Delta-V is a slope generator borne from the legacy of the Serge DUSG, adding two VCAs for easy end-of-chain voice construction.
