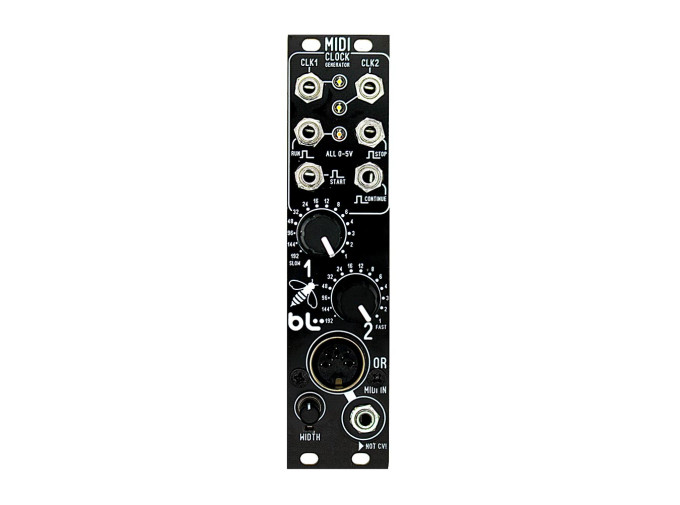

Blue LanternMIDI To Pulse Clock Generator

Blue Lantern MIDI To Pulse Clock

Synchronize all your Eurorack gear to your DAW or outboard MIDI synths/drum machines with MIDI to Pulse by Blue Lantern, a MIDI-to-CV converter for clock generation. Start by connecting your MIDI gear to the MIDI to Pulse module via 5-Pin DIN or TRS MIDI input. From there, you are presented with essential timing features in MIDI as well as two analog clocks that each have a divider based on a 24 pulse per quarter note MIDI clock signal—produce anything from 1 pulse for every 4 bars up to 12 pulses per quarter note! You can adjust the pulse width of your clock outputs via the Width control, outputting anything from 256µs to 65.5ms pulses.

Additionally, MIDI to Pulse offers dedicated transport control pulse outputs, including Start, Stop, and a Run output that produces a high gate for as long as MIDI clock is running. The Continue output produces a continuous clock based on whether or not your MIDI gear features the MIDI Continue message. Easy for getting your hardware sequencers, synthesizers, and DAW communicating with your Eurorack gear, the MIDI to Pulse is great for keeping your studio and live setups synced up.

MIDI To Pulse Clock Features

• MIDI to clock generator
• Dual clock outputs
• Start and Stop pulse outputs
• Run high gate signal output
• Additional continuous clock signal
• Two clock dividers based on 24ppqn rate of MIDI clock
• 5-Pin DIN and TRS MIDI inputs
• Clock width control for perfect synchronization
• Three LEDs for visual feedback of outputs
