Blood Cells AudioAUSCULT Output Module


No Longer Available Contact us for a recommendation.

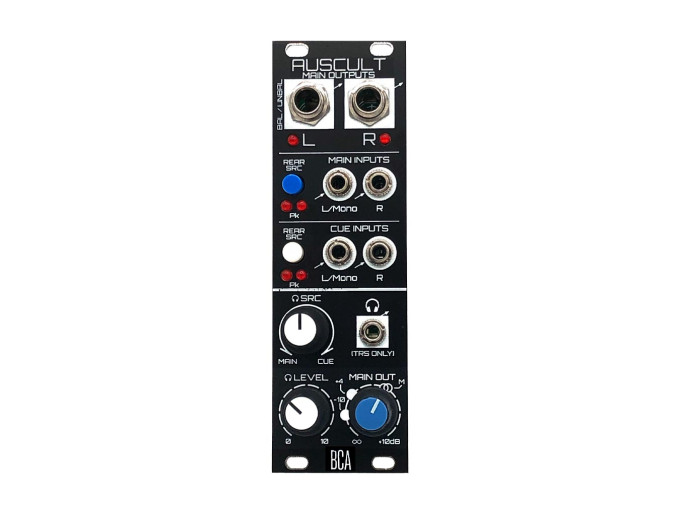

Blood Cells Audio AUSCULT

Blood Cells Audio brings us the Auscult, a high-quality stereo main output module with cue inputs and balanced 1/4" stereo outputs. Featuring the option to use front mounted 1/8" jacks for the main and cue inputs or use the rear inputs to interface with future Blood Cells Audio modules, the Auscult is versatile and straightforward. A dedicated 1/8" TRS headphone output is mounted on the front and has a mix knob that lets you fade from the mains to the cue making it perfect for live performance. Blood Cells Audio Auscult is a great way to pipe out your modular system to a PA or studio equipment.

AUSCULT Features

  • Stereo output module
  • Balanced 1/4" outputs with up to +10dB of gain
  • VCA crossfade monitoring system for auditioning cue input against main output
  • Switchable headphone output levels for driving high-impedance headphones
  • Cue and Main inputs are switchable between the front and rear connections
  • Eurorack module
  • Width: 8hp
  • Depth: 33mm
  • Current draw: 85mA @ +12V, 85mA @ +12V
