1073 DMPS Stereo Microphone Preamp
$2,395.00

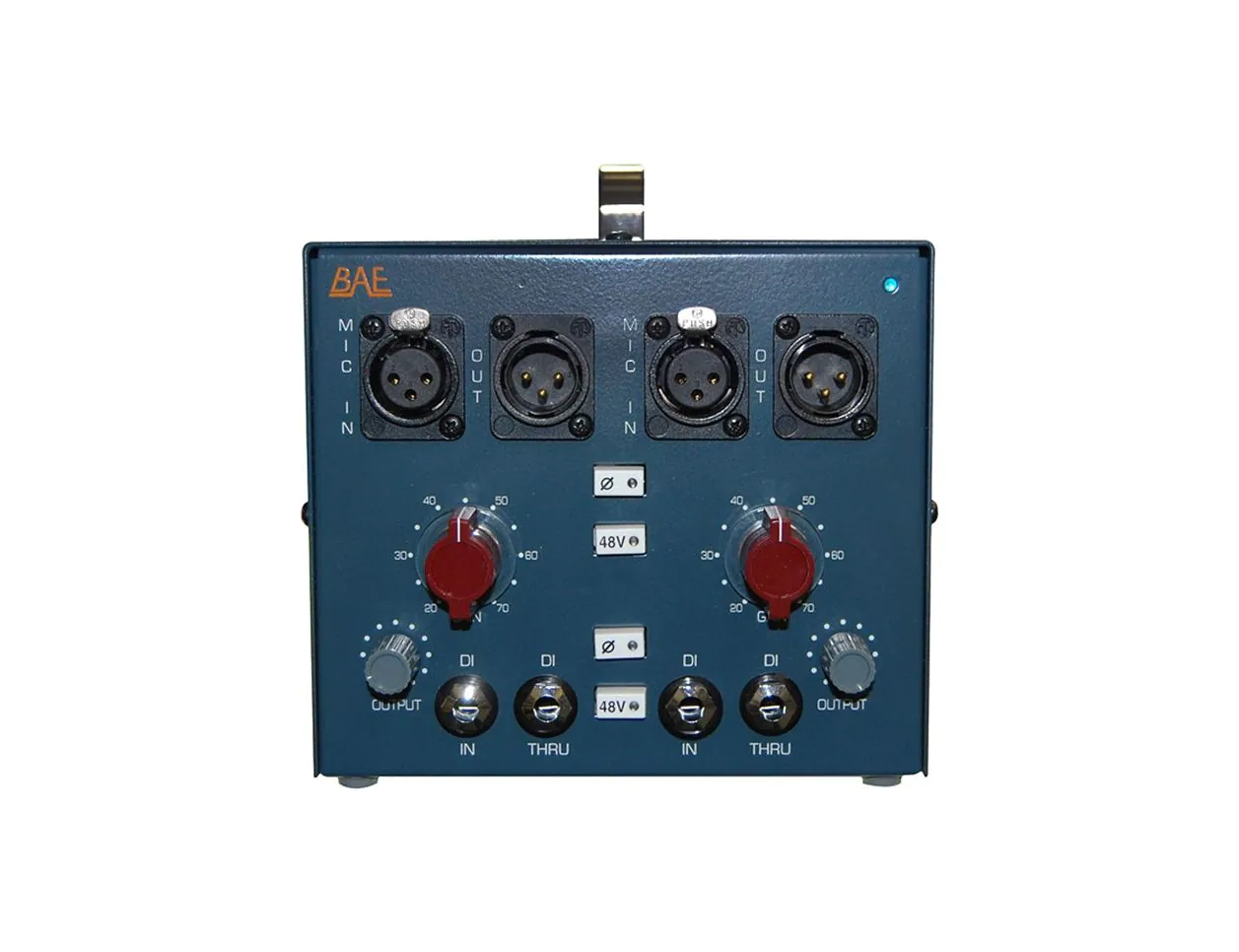

BAE 1073DMP Dual Microphone Preamp
The First Portable Dual 1073 Mic Pre
The 1073 Dual DMP features the same pre-amps and the same Carnhill (St Ives) transformers as the 1073 and 1084.
All units come standard with the 'Bootsy Collins' mod which consists of a Jensen DI transformer to create the first 1073 direct box. The Dual DMP features include two DI thrus, phase reverse, 48V for phantom power, a built in PSU for extra portability and the same hand-wired modular design that BAE is known for.
1073 Features
- Built in PSU for extra portability
- DI in and DI through
- 48v for phantom power
- Solid steel chassis
- Same hand-wired modular design that BAE is known for
Product Details
- Frequency Response: 10Hz to -3dB at 55kHz
- Mic Pre Input Impedance: ≅1200 ohms
- DI Input Impedance: ≅150k ohms
- Output Impedance: 65 ohms
- Common Mode Rejection Ratio: 100dB min @ 60Hz
- Maximum Output Level: +27.4 dBu @ 600Ω
- Power Requirements: 115/230 VAC, 28W
- Gain Voltage: 0 to 33.4 Volts
- Gain dB: 0 to 71 dB
- Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
- Dimensions (Inches): 5.3W x 4L x 11D
