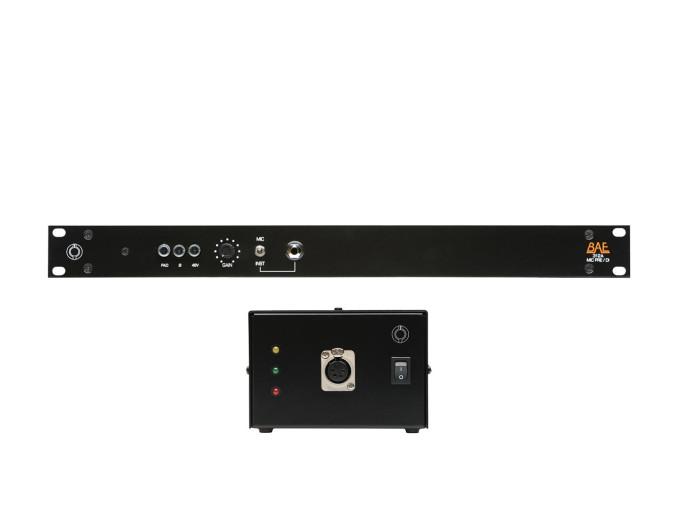

BAE312A Single Microphone Preamp (w/ PSU)
BAE 312A Single Microphone Preamp (w/ PSU)
The 312A is available as a 500 series module or a single or dual channel 19" rackmount.
Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.
Made with the highest quality parts including Jensen input and output transformers and the Avedis 1122 opamp. The 312A also includes a high impedance DI for instruments.
- Made using Avedis 1122 opamps
- Supplied with Jensen input and output transformers
- Remote power supply with four-foot cable capable of four times the current needed by the preamps for optimum sound quality
- Switches have gold contacts for long life
- XLR connectors on the back for mic input and output and phone jack in front for direct input
- High impedance direct input for guitar and synthesizer
- Separate front panel switches for phantom power
- Frequency Response: 5Hz to 75kHz (-3dB)
- Mic Input Impedance: ≈1400 ohms
- Line Input Impedance: 10k ohms
- DI Input Impedance: ≈250k ohms
- Output Impedance: 75 ohms
- Common Mode Rejection Ratio: 10dB min @ 60Hz
- Maximum Output Level: +27.1 dBu @ 600Ω
- Power Requirements: 115/230 VAC, 27W
- Gain dB: 10 to 66 dB
- Equivalent Input Noise: -120 dBu; Unweighted 300kHz Bandwidth
- Weight: 7 LBS / 3.18 KG
- Dimensions in Inches:19W x 1.75L x 9D (Rackmount)
