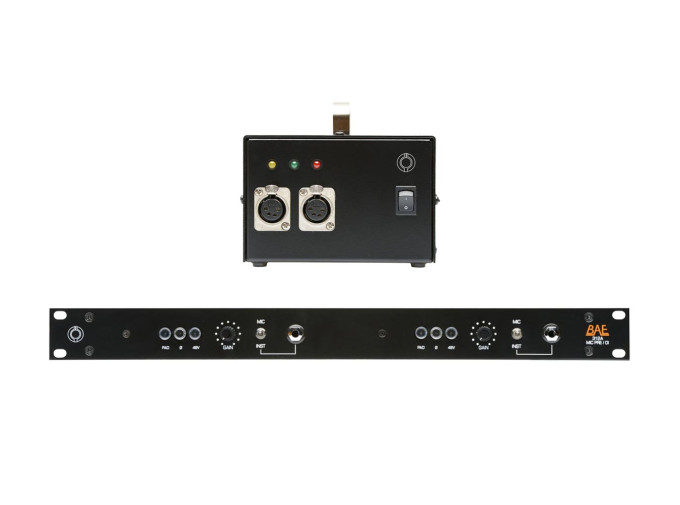

BAE 312A

The 312A is available as a 500 series module or a single or dual channel 19" rackmount.

Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.

Made with the highest quality parts including Jensen input and output transformers and the Avedis 1122 opamp. The 312A also includes a high impedance DI for instruments.

312A Features

  • Made using Avedis 1122 opamps
  • Supplied with Jensen input and output transformers
  • Remote power supply with four-foot cable capable of four times the current needed by the preamps for optimum sound quality
  • Switches have gold contacts for long life
  • XLR connectors on the back for mic input and output and phone jack in front for direct input
  • High impedance direct input for guitar and synthesizer
  • Separate front panel switches for phantom power
  • Frequency Response: 5Hz to 75kHz (-3dB)
  • Mic Input Impedance: ≈1400 ohms
  • Line Input Impedance: 10k ohms
  • DI Input Impedance: ≈250k ohms
  • Output Impedance: 75 ohms
  • Common Mode Rejection Ratio: 10dB min @ 60Hz
  • Maximum Output Level: +27.1 dBu @ 600Ω
  • Power Requirements: 115/230 VAC, 27W
  • Gain dB: 10 to 66 dB
  • Equivalent Input Noise: -120 dBu; Unweighted 300kHz Bandwidth
  • Weight: 8 LBS / 3.63 KG
  • Dimensions in Inches:19W x 1.75L x 9D (Rackmount)
