BAE10DCFwps Filter Compressor w/ Internal PSU

Item#
N13-02305
$2,095.00 $1,885.50
  • Sale
  • 10% OFF
In Stock Available immediately!

  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty

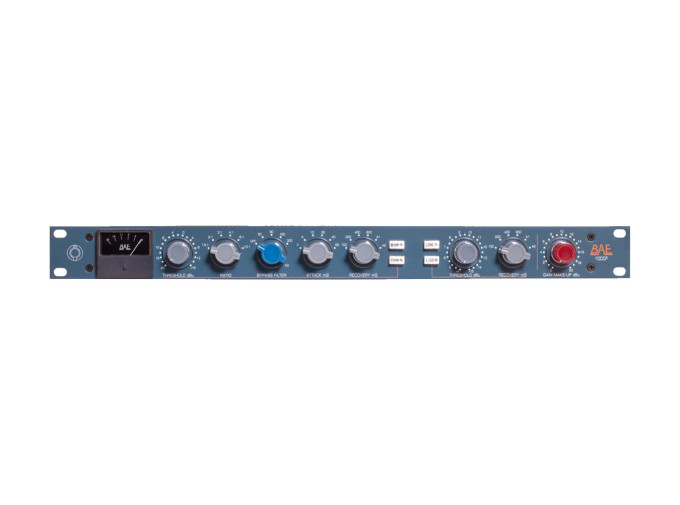

BAE 10DCFwps

The BAE 10DCF is a compressor/limiter uniquely situated for drum and bass applications, due to its bypass filter which will leave your lows uncompressed and your higher frequencies gently hugged. Selectable between 50, 80, 160, and 300Hz, the bypass filter will engage at the set frequency and everything below it will pass through untouched. This is great for keeping your mix bright and gives you more control over the balance of your mix. Works perfectly for tracking, as well, the 10DCF is great when you need to pump up your growl without blowing out the bottom. BAE is known for quality and with an all discrete circuit, Jensen and Carnhill transformers, and satisfying Marconi knobs, the 10DCF is a piece of hardware you will come back to over and over again.

10DCFwps Features

  • Single channel compressor/limiter with independent controls for each
  • Low frequency bypass filter with selectable range: 50, 80, 160, and 300Hz
  • Discrete Class A transformer-coupled circuit throughout
  • High quality Elma switches
  • True bypass even when unit is off
  • Rugged gas tank style gain reduction meter
  • Dimensions:19 x 1.75 x 9 in
  • Power Consumption: 200mA at 24VDC
  • Frequency Response: 5Hz to 45kHz -1dB Measured at +8dBu
  • Bypass Filter: 50, 80,160 and 300 Hz
  • Maximum Output Level: +33dBu into 10kΩ, +27dBU into 600Ω
  • Distortion: Varies from 0.03% to greater than 1%
  • Compressor Threshold: -20dBu to +16dBu with 2dB steps, Ratio: 1.5:1 to 10:1 with 6 position switch, Attack: 2mS to 80mS with 6 position switch Recovery:100, 200, 400, 800mS
  • Limiter: Threshold: +4dBu to +15dBu with 0.5 dB steps, Attack: Slow 4mS, Fast 2mS, Recovery: 100, 200, 400, 800mS
