BAE 10DC

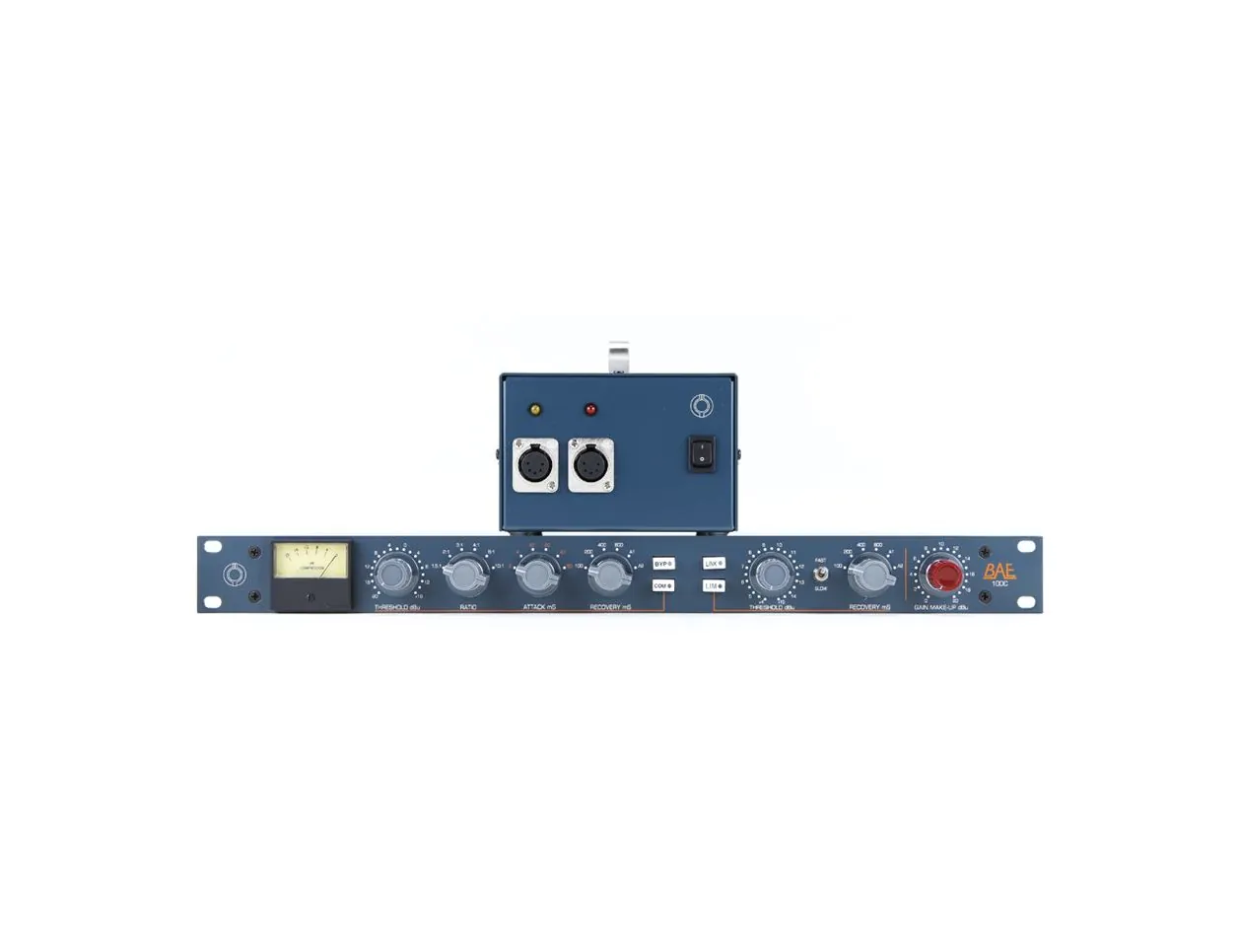

BAE Audio introduces the model 10DC compressor/limiter to compliment their line of Class A series outboard gear. The 10DC features a transformer coupled, all-discrete circuitry which is sonically familiar to the BAE Audio Class A line of gear, like the 1073, for the classic analog sound favorable in today's digital recording. Stepped switches for every control, a reverse analog meter, and the trademark Marconi knobs makes seeing what you're doing easy and repeatable. Independent circuitry for compressor and limiter - use one, or both, for greater control. Also implements a true bypass and is stereo linkable. The 10DC is nicely housed in a steel chassis using the same remote supply as other BAE Audio units.
10DC Features
- Discrete Class A transformer-coupled circuit throughoutÂ
- Fully independent Compressor and Limiter for separate audio dynamics controlÂ
- Intuitive layout with illuminated meter showing gain reductionÂ
- High quality stepped Elma switches for dialing accuracy and repeatabilityÂ
- True bypass even when the unit is offÂ
- Same remote power supply as used on other 24VDC BAE unitsÂ
- One power supply can run two units
Frequency Response
- 5Hz to 45kHz -1dB Measured at +8dBu
Noise
- -80dBu with 200ohms source
Maximum Output Level
- +33dBu into 10kΩ +27dBU into 600Ω
Distortion
- Varies from 0.03% to greater than 1%
Compressor
- Threshold:Â -20dBu to +16dBu with 2dB steps
- Ratio:Â 1.5:1 to 10:1 with 6 position switch
- Attack:Â 2mS to 80mS with 6 position switch
- Recovery:Â 100, 200, 400, 800mS
- Auto 1 Â Â 100mS isolated peaks, 2 Sec prolonged levels
- Auto 2 Â Â 50mS isolated peaks, 5 Sec prolonged levels
Limiter
- Threshold:Â +4dBu to +15dBu with 0.5 dB steps
- Attack:Â Slow 4mS, Fast 2mS
- Recovery:Â 100, 200, 400, 800mS
- Auto 1:Â 100mS isolated peaks, 2 Sec prolonged levels
- Auto 2:Â 50mS isolated peaks, 5 Sec prolonged levels
Gain Make-up
- 0 to +20dBu in 1 dB steps
Output Impedance
- 100Ω Balanced earth free
Power Consumption
- 200mA at 24VDC
Dimensions in Inches
- 19W x 1.75L x 9D
